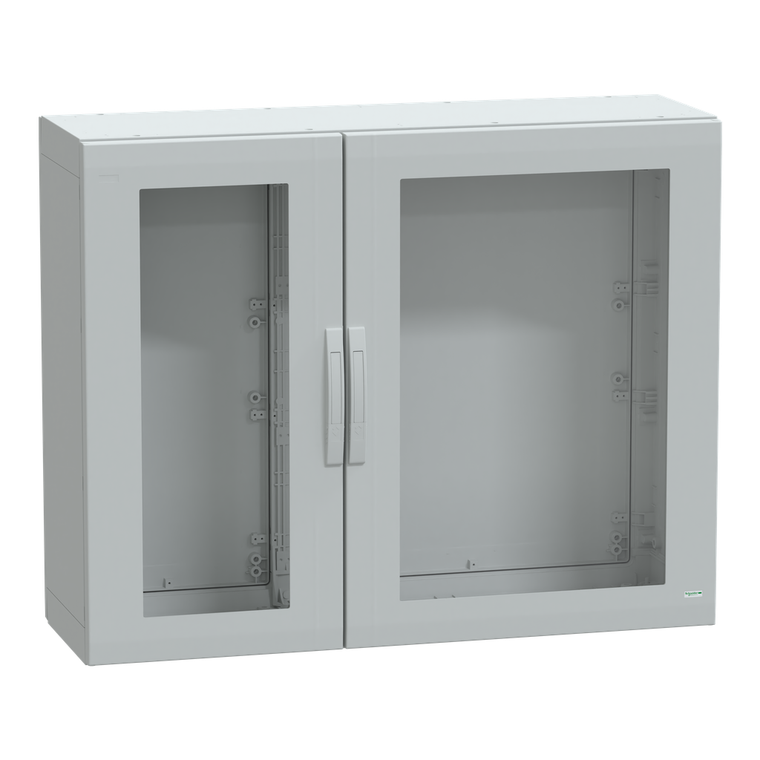

Schneider Electric NSYPLA10124TG 7035 Fs Pol 1000X1250X420 Glazed

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYPLA10124TG 7035 Fs Pol 1000X1250X420 Glazed

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYPLA10124TG

UPC:

3606480774423

MPN:

Condition:

New

Standards:

UL 508 A || IEC 62208

Sustainable Offer Status:

Green Premium product

Enclosure Nominal Depth:

420 mm

Door Opening Side:

right and left 120 °)

Mercury Free:

Yes

Product Or Component Type:

suitable enclosure

Circularity Profile:

N/A

Device Short Name:

PLA

Enclosure Mounting:

floor-standing

Electrical Insulation Class:

class II

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Body Type:

sealed top and bottom part assembled with side parts

Device Application:

multi-purpose

Fire Resistance:

960 °C IEC 62208

Ip Degree Of Protection:

IP65 IEC 60529 completely sealed)

Number Of Doors:

2

Ik Degree Of Protection:

IK08 IEC 62262 glazed door)

Lock Type:

4 points lock, 5 mm double-bar

Device Composition:

1 top part || 1 bottom part || 2 side part || 2 door || 2 rear panel

Ambient Air Temperature For Storage:

-35-90 °C

Color:

Gray RAL 7035)

Product Name:

Thalassa PLA

Enclosure Nominal Height:

1000 mm

Nema Degree Of Protection:

NEMA 13 || NEMA 2 || NEMA 1 || NEMA 12

Removable Parts:

door by hinges || rear panel by fixing element

Accessibility For Operation:

front || rear

Rohs Exemption Information:

Yes

Material:

polyester reinforced with fibreglass

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Enclosure Nominal Width:

1250 mm

Product Certifications:

DNV Marine || UL/cUL listed || Veritas

Door Type:

transparent front

Range:

Thalassa

Environmental Disclosure:

ENVPEP110505EN

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Datasheet:

View
