Schneider Electric

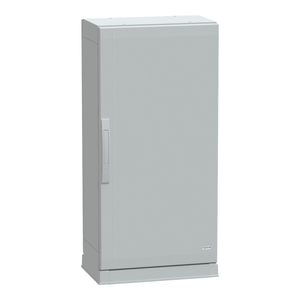

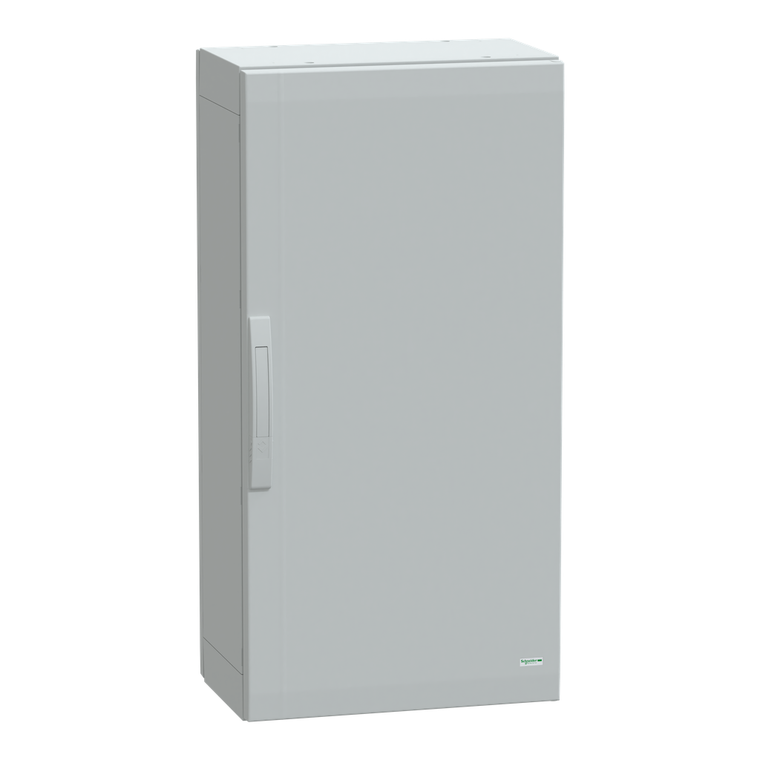

Schneider Electric NSYPLA1053G 7035 Fs Pol 1000X500X320

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric NSYPLA1053G 7035 Fs Pol 1000X500X320

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYPLA1053G

UPC:

3606480774430

MPN:

Condition:

New

Material:

polyester reinforced with fibreglass

Door Type:

Solid front

Rohs Exemption Information:

Yes

Mercury Free:

Yes

Device Composition:

1 top part || 1 bottom part

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Lock Type:

4 points lock, 5 mm double-bar

Nema Degree Of Protection:

NEMA 13 || NEMA 12 || NEMA 3S || NEMA 2 || NEMA 1 || NEMA 5 || NEMA 3X || NEMA 3 || NEMA 3R

Device Short Name:

PLA

Device Application:

multi-purpose

Accessibility For Operation:

front || rear

Door Opening Side:

reversible 120 °)

Removable Parts:

door by hinges || rear panel by fixing element

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Product Name:

Thalassa PLA

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Product Certifications:

Veritas || DNV Marine || UL/cUL listed

Electrical Insulation Class:

class II

Fire Resistance:

960 °C IEC 62208

Enclosure Mounting:

floor-standing

Enclosure Nominal Width:

500 mm

Standards:

UL 508 A || IEC 62208

Range:

Thalassa

Number Of Doors:

1

Enclosure Nominal Height:

1000 mm

Circularity Profile:

N/A

Color:

Gray RAL 7035)

Ambient Air Temperature For Storage:

-35-90 °C

Sustainable Offer Status:

Green Premium product

Ip Degree Of Protection:

IP65 IEC 60529 completely sealed)

Ik Degree Of Protection:

IK10 IEC 62262 plain door)

Enclosure Nominal Depth:

320 mm

Environmental Disclosure:

ENVPEP110505EN

Product Or Component Type:

suitable enclosure

Body Type:

sealed top and bottom part assembled with side parts

Catalog:

View

Datasheet:

View
