Schneider Electric

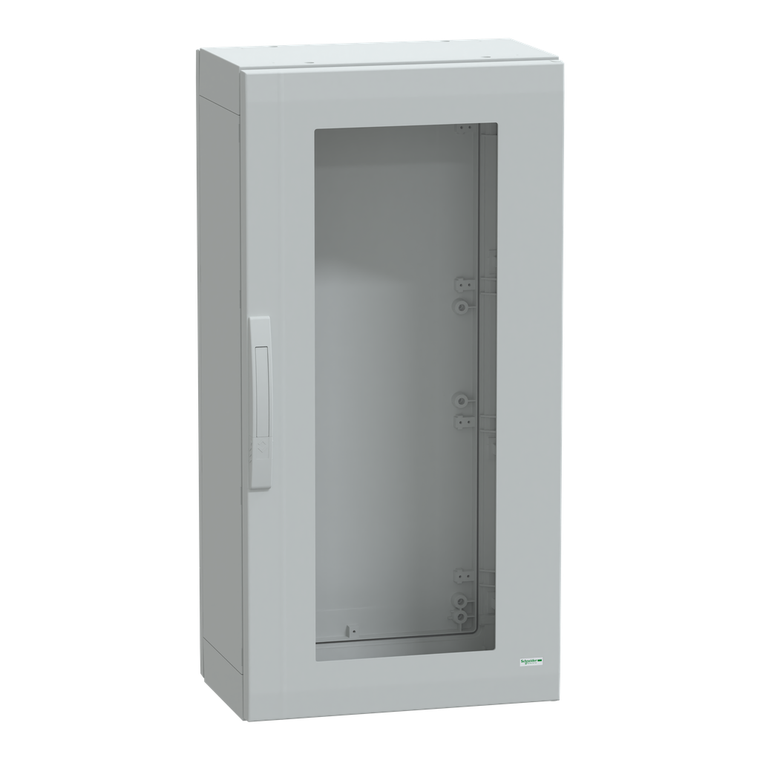

Schneider Electric NSYPLA1053TG 7035 Fs Pol 1000X500X320 Glazed

SKU:

NSYPLA1053TG

UPC:

3606480774447

MPN:

Condition:

New

Door Type:

transparent front

Ip Degree Of Protection:

IP65 IEC 60529 completely sealed)

Range:

Thalassa

Circularity Profile:

N/A

Removable Parts:

door by hinges || rear panel by fixing element

Mercury Free:

Yes

Ik Degree Of Protection:

IK08 IEC 62262 glazed door)

Product Certifications:

DNV Marine || UL/cUL listed || Veritas

Enclosure Nominal Depth:

320 mm

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Ambient Air Temperature For Storage:

-35-90 °C

Door Opening Side:

reversible 120 °)

Device Short Name:

PLA

Product Name:

Thalassa PLA

Color:

Gray RAL 7035)

Device Composition:

1 top part || 1 bottom part || 2 side part || 1 rear panel || 1 door

Device Application:

multi-purpose

Environmental Disclosure:

ENVPEP110505EN

Nema Degree Of Protection:

NEMA 3S || NEMA 3 || NEMA 12 || NEMA 13 || NEMA 5 || NEMA 2 || NEMA 3X || NEMA 1 || NEMA 3R

Body Type:

sealed top and bottom part assembled with side parts

Enclosure Nominal Height:

1000 mm

Standards:

IEC 62208 || UL 508 A

Fire Resistance:

960 °C IEC 62208

Accessibility For Operation:

rear || front

Enclosure Mounting:

floor-standing

Rohs Exemption Information:

Yes

Number Of Doors:

1

Material:

polyester reinforced with fibreglass

Electrical Insulation Class:

class II

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Sustainable Offer Status:

Green Premium product

Product Or Component Type:

suitable enclosure

Lock Type:

4 points lock, 5 mm double-bar

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Enclosure Nominal Width:

500 mm
