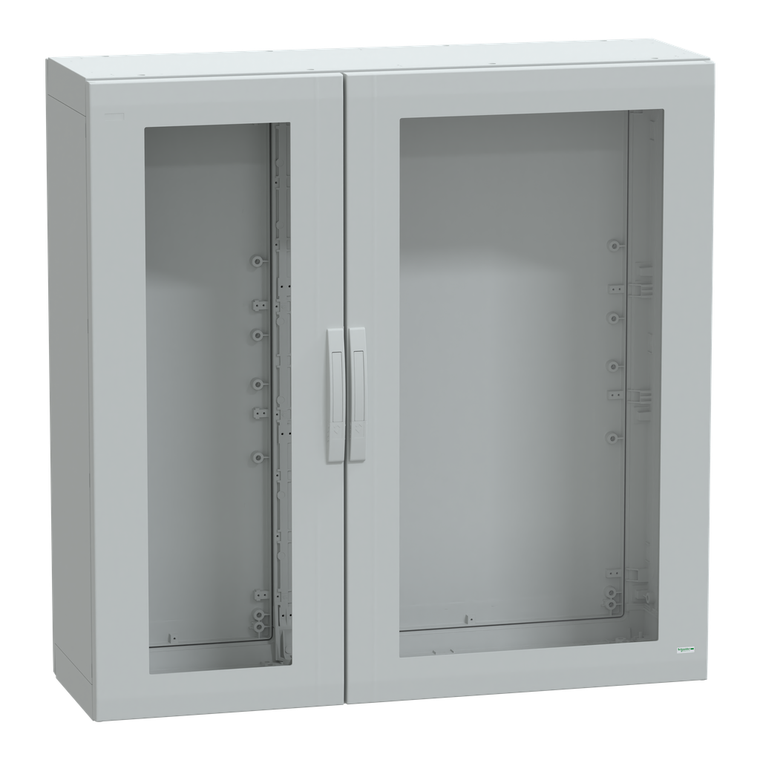

Schneider Electric NSYPLA12124TG 7035 Fs Pol 1250X1250X420 Glazed

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYPLA12124TG 7035 Fs Pol 1250X1250X420 Glazed

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYPLA12124TG

UPC:

3.60648E+12

MPN:

Condition:

New

Nema Degree Of Protection:

NEMA 12 || NEMA 2 || NEMA 1 || NEMA 13

Standards:

IEC 62208 || UL 508 A

Enclosure Nominal Height:

1250 mm

Rohs Exemption Information:

Yes

Product Or Component Type:

suitable enclosure

Fire Resistance:

960 °C IEC 62208

Enclosure Mounting:

floor-standing

Enclosure Nominal Depth:

420 mm

Ambient Air Temperature For Storage:

-35-90 °C

Door Type:

transparent front

Range:

Thalassa

Removable Parts:

door by hinges || rear panel by fixing element

Electrical Insulation Class:

class II

Sustainable Offer Status:

Green Premium product

Mercury Free:

Yes

Device Short Name:

PLA

Material:

polyester reinforced with fibreglass

Body Type:

sealed top and bottom part assembled with side parts

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Environmental Disclosure:

ENVPEP110505EN

Number Of Doors:

2

Device Composition:

1 top part || 1 bottom part || 2 side part || 2 door || 2 rear panel

Product Name:

Thalassa PLA

Ip Degree Of Protection:

IP65 IEC 60529 completely sealed)

Enclosure Nominal Width:

1250 mm

Lock Type:

4 points lock, 5 mm double-bar

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Circularity Profile:

N/A

Device Application:

multi-purpose

Accessibility For Operation:

rear || front

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Product Certifications:

DNV Marine || UL/cUL listed || Veritas

Color:

Gray RAL 7035)

Ik Degree Of Protection:

IK08 IEC 62262 glazed door)

Door Opening Side:

right and left 120 °)
