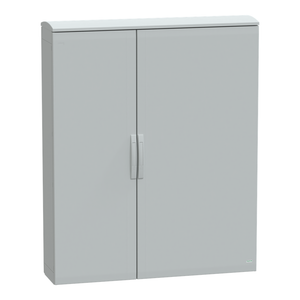

Schneider Electric NSYPLA15123G 7035 Fs Pol 1500X1250X320

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYPLA15123G 7035 Fs Pol 1500X1250X320

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYPLA15123G

UPC:

3.61E+12

MPN:

Condition:

New

Door Opening Side:

right and left 120 °)

Removable Parts:

door by hinges || rear panel by fixing element

Sustainable Offer Status:

Green Premium product

Device Application:

multi-purpose

Device Short Name:

PLA

Number Of Doors:

2

Standards:

UL 508 A || IEC 62208

Nema Degree Of Protection:

NEMA 12 || NEMA 1 || NEMA 2 || NEMA 13

Color:

Gray RAL 7035)

Ip Degree Of Protection:

IP65 IEC 60529 completely sealed)

Product Name:

Thalassa PLA

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Material:

polyester reinforced with fibreglass

Range:

Thalassa

Environmental Disclosure:

ENVPEP110505EN

Lock Type:

4 points lock, 5 mm double-bar

Enclosure Nominal Depth:

320 mm

Circularity Profile:

N/A

Body Type:

sealed top and bottom part assembled with side parts

Electrical Insulation Class:

class II

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Accessibility For Operation:

rear || front

Fire Resistance:

960 °C IEC 62208

Ambient Air Temperature For Storage:

-35-90 °C

Rohs Exemption Information:

Yes

Door Type:

Solid front

Enclosure Mounting:

floor-standing

Product Or Component Type:

suitable enclosure

Ik Degree Of Protection:

IK10 IEC 62262 plain door)

Mercury Free:

Yes

Enclosure Nominal Width:

1250 mm

Device Composition:

1 top part || 1 bottom part || 2 side part || 2 door || 2 rear panel

Enclosure Nominal Height:

1500 mm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Product Certifications:

Veritas || UL/cUL listed || DNV Marine
