Schneider Electric

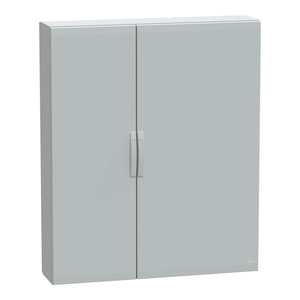

Schneider Electric NSYPLA15123TG 7035 Fs Pol 1500X1250X320 Glazed

SKU:

NSYPLA15123TG

UPC:

3.60648E+12

MPN:

Condition:

New

Ip Degree Of Protection:

IP65 IEC 60529 completely sealed)

Enclosure Nominal Height:

1500 mm

Product Or Component Type:

suitable enclosure

Device Application:

multi-purpose

Lock Type:

4 points lock, 5 mm double-bar

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Environmental Disclosure:

ENVPEP110505EN

Range:

Thalassa

Accessibility For Operation:

front || rear

Product Name:

Thalassa PLA

Ambient Air Temperature For Storage:

-35-90 °C

Material:

polyester reinforced with fibreglass

Ik Degree Of Protection:

IK08 IEC 62262 glazed door)

Door Type:

transparent front

Rohs Exemption Information:

Yes

Device Composition:

1 top part || 1 bottom part || 2 side part || 2 door || 2 rear panel

Circularity Profile:

N/A

Device Short Name:

PLA

Sustainable Offer Status:

Green Premium product

Enclosure Mounting:

floor-standing

Product Certifications:

DNV Marine || UL/cUL listed || Veritas

Electrical Insulation Class:

class II

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Fire Resistance:

960 °C IEC 62208

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Removable Parts:

door by hinges || rear panel by fixing element

Number Of Doors:

2

Body Type:

sealed top and bottom part assembled with side parts

Nema Degree Of Protection:

NEMA 1 || NEMA 2 || NEMA 12 || NEMA 13

Enclosure Nominal Width:

1250 mm

Enclosure Nominal Depth:

320 mm

Door Opening Side:

right and left 120 °)

Color:

Gray RAL 7035)

Standards:

IEC 62208 || UL 508 A

Mercury Free:

Yes

Catalog:

View

Datasheet:

View
