Schneider Electric NSYPLA15124G 7035 Fs Pol 1500X1250X420

Schneider Electric NSYPLA15124G 7035 Fs Pol 1500X1250X420

Schneider Electric
SKU:
NSYPLA15124G
|
UPC:
3.61E+12
$1,418.95
(No reviews yet) Write a Review
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

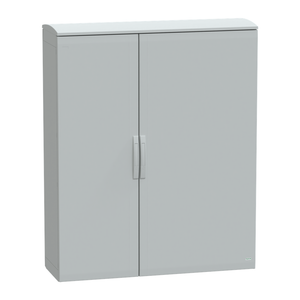

Thalassa PLA Floor standing polyester enclosure completely sealed, version PLA. 1500 x 1250 x 420 mm. Sealed top and bottom part assembled with side parts. 4 points door locking system with 5-mm double-bar locks. Polyester reinforced with fibreglass body. Protection IP 65, IK10, Grey RAL 7035.
Additional Information
Device Short Name:
PLA
Accessibility For Operation:
rear || front
Product Name:
Thalassa PLA
Ambient Air Temperature For Storage:
-35-90 °C
Number Of Doors:
2
Body Type:
sealed top and bottom part assembled with side parts
Ip Degree Of Protection:
IP65 IEC 60529 completely sealed)
Product Or Component Type:
suitable enclosure
Mercury Free:
Yes
Door Type:
Solid front
Range:
Thalassa
Sustainable Offer Status:
Green Premium product
Enclosure Mounting:
floor-standing
Standards:
IEC 62208 || UL 508 A
Removable Parts:
door by hinges || rear panel by fixing element
Material:
polyester reinforced with fibreglass
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Color:
Gray RAL 7035)
Fire Resistance:
960 °C IEC 62208
Environmental Disclosure:
ENVPEP110505EN
Nema Degree Of Protection:
NEMA 1 || NEMA 2 || NEMA 13 || NEMA 12
Enclosure Nominal Width:
1250 mm
Lock Type:
4 points lock, 5 mm double-bar
Circularity Profile:
N/A
Ik Degree Of Protection:
IK10 IEC 62262 plain door)
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Door Opening Side:
right and left 120 °)
Rohs Exemption Information:
Yes
Product Certifications:
DNV Marine || Veritas || UL/cUL listed
Electrical Insulation Class:
class II
Device Application:
multi-purpose
Enclosure Nominal Height:
1500 mm
Enclosure Nominal Depth:
420 mm
Device Composition:
1 top part || 1 bottom part || 2 side part || 2 door || 2 rear panel
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Datasheet:
View
