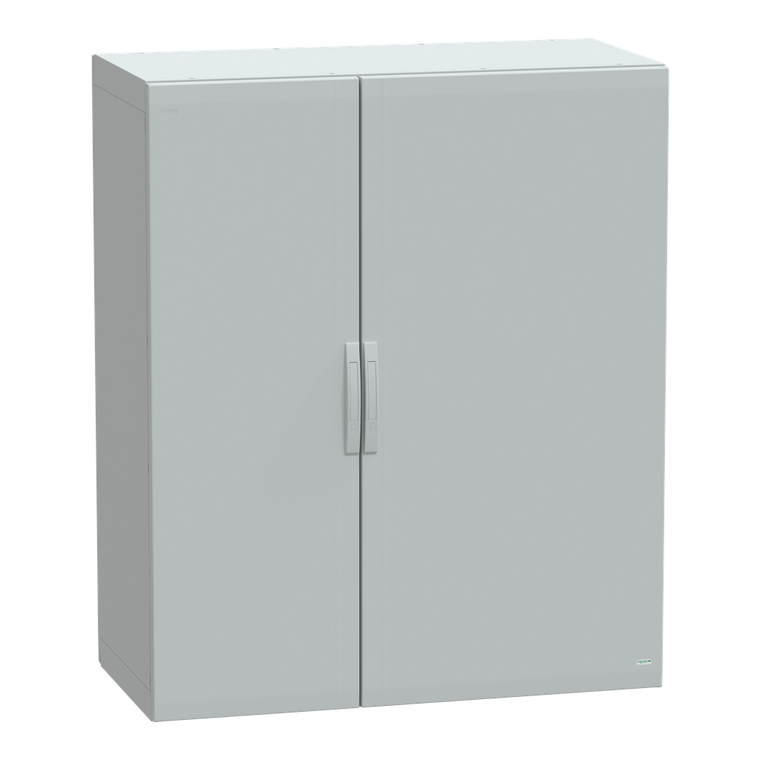

Schneider Electric NSYPLA15126G Pol. Enc. 1500X1250X620 Ip65

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYPLA15126G Pol. Enc. 1500X1250X620 Ip65

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYPLA15126G

UPC:

3.60648E+12

MPN:

Condition:

New

Electrical Insulation Class:

class II

Product Certifications:

UL/cUL listed || Veritas || DNV Marine

Enclosure Nominal Height:

1500 mm

Ip Degree Of Protection:

IP65 IEC 60529 completely sealed)

Device Composition:

1 top part || 1 bottom part || 2 side part || 2 door || 2 rear panel

Rohs Exemption Information:

Yes

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Device Application:

multi-purpose

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Accessibility For Operation:

rear || front

Body Type:

sealed top and bottom part assembled with side parts

Product Name:

Thalassa PLA

Nema Degree Of Protection:

NEMA 13 || NEMA 12 || NEMA 1 || NEMA 2

Number Of Doors:

2

Product Or Component Type:

suitable enclosure

Standards:

UL 508 A || IEC 62208

Enclosure Nominal Width:

1250 mm

Sustainable Offer Status:

Green Premium product

Fire Resistance:

960 °C IEC 62208

Removable Parts:

door by hinges || rear panel by fixing element

Device Short Name:

PLA

Enclosure Nominal Depth:

620 mm

Lock Type:

4 points lock, 5 mm double-bar

Enclosure Mounting:

floor-standing

Environmental Disclosure:

ENVPEP110505EN

Circularity Profile:

N/A

Door Type:

Solid front

Color:

Gray RAL 7035)

Mercury Free:

Yes

Door Opening Side:

right and left 120 °)

Material:

polyester reinforced with fibreglass

Ik Degree Of Protection:

IK10 IEC 62262 plain door)

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Ambient Air Temperature For Storage:

-35-90 °C

Range:

Thalassa
