Schneider Electric

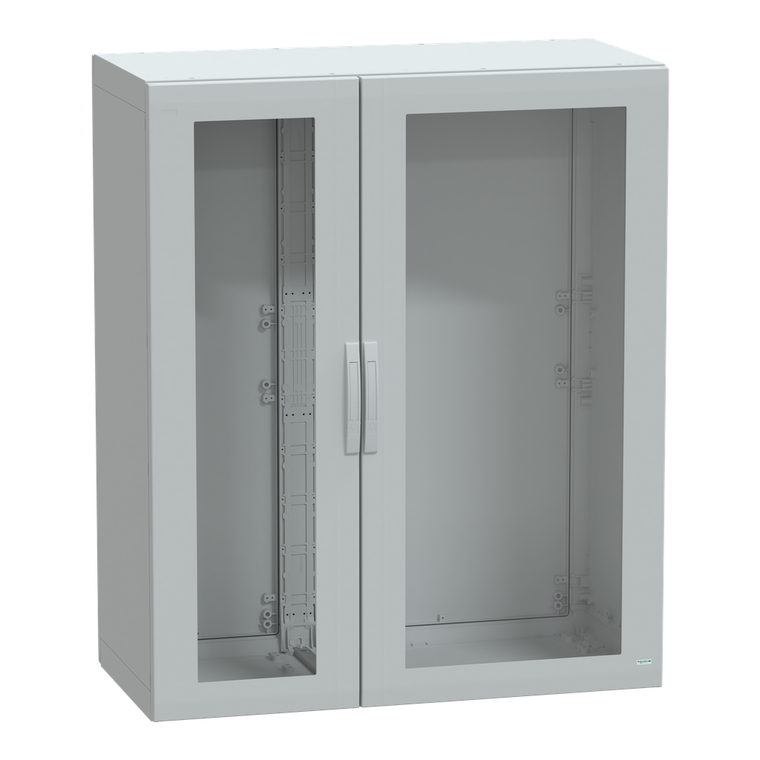

Schneider Electric NSYPLA15126TG Pla Glazed Door H1500Xw1250Xd620

SKU:

NSYPLA15126TG

UPC:

3.61E+12

MPN:

Condition:

New

Door Type:

transparent front

Mercury Free:

Yes

Color:

Gray RAL 7035)

Rohs Exemption Information:

Yes

Accessibility For Operation:

rear || front

Body Type:

sealed top and bottom part assembled with side parts

Door Opening Side:

right and left 120 °)

Removable Parts:

door by hinges || rear panel by fixing element

Device Application:

multi-purpose

Ik Degree Of Protection:

IK08 IEC 62262 glazed door)

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Range:

Thalassa

Product Or Component Type:

suitable enclosure

Device Short Name:

PLA

Material:

polyester reinforced with fibreglass

Electrical Insulation Class:

class II

Enclosure Nominal Height:

1500 mm

Nema Degree Of Protection:

NEMA 12 || NEMA 2 || NEMA 13 || NEMA 1

Enclosure Mounting:

floor-standing

Product Name:

Thalassa PLA

Ambient Air Temperature For Storage:

-35-90 °C

Product Certifications:

UL/cUL listed || Veritas || DNV Marine

Fire Resistance:

960 °C IEC 62208

Environmental Disclosure:

ENVPEP110505EN

Ip Degree Of Protection:

IP65 IEC 60529 completely sealed)

Standards:

IEC 62208 || UL 508 A

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Enclosure Nominal Depth:

620 mm

Number Of Doors:

2

Lock Type:

4 points lock, 5 mm double-bar

Circularity Profile:

N/A

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Enclosure Nominal Width:

1250 mm

Device Composition:

1 top part || 1 bottom part || 2 side part || 2 door || 2 rear panel

Sustainable Offer Status:

Green Premium product

Datasheet:

View
