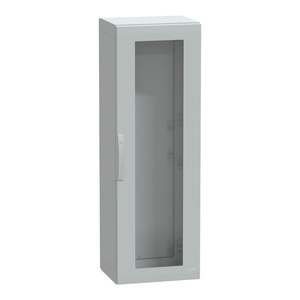

Schneider Electric NSYPLA1554G 7035 Fs Pol 1500X500X420

SKU:

NSYPLA1554G

UPC:

3606480774775

MPN:

Condition:

New

Device Short Name:

PLA

Accessibility For Operation:

rear || front

Mercury Free:

Yes

Product Name:

Thalassa PLA

Rohs Exemption Information:

Yes

Body Type:

sealed top and bottom part assembled with side parts

Removable Parts:

door by hinges || rear panel by fixing element

Enclosure Nominal Height:

1500 mm

Range:

Thalassa

Enclosure Mounting:

floor-standing

Product Or Component Type:

suitable enclosure

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Device Composition:

1 top part || 1 bottom part || 2 side part || 1 rear panel || 1 door

Circularity Profile:

N/A

Standards:

UL 508 A || IEC 62208

Fire Resistance:

960 °C IEC 62208

Material:

polyester reinforced with fibreglass

Door Opening Side:

reversible 120 °)

Product Certifications:

DNV Marine || Veritas || UL/cUL listed

Device Application:

multi-purpose

Ambient Air Temperature For Storage:

-35-90 °C

Door Type:

Solid front

Number Of Doors:

1

Color:

Gray RAL 7035)

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Ip Degree Of Protection:

IP65 IEC 60529 completely sealed)

Nema Degree Of Protection:

NEMA 3 || NEMA 3R || NEMA 3X || NEMA 2 || NEMA 1 || NEMA 13 || NEMA 3S || NEMA 5 || NEMA 12

Enclosure Nominal Width:

500 mm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Electrical Insulation Class:

class II

Environmental Disclosure:

ENVPEP110505EN

Ik Degree Of Protection:

IK10 IEC 62262 plain door)

Lock Type:

4 points lock, 5 mm double-bar

Enclosure Nominal Depth:

420 mm

Sustainable Offer Status:

Green Premium product
