Schneider Electric

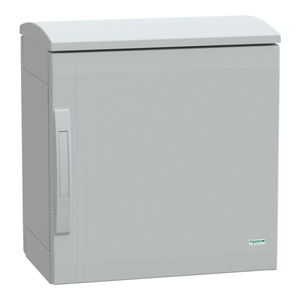

Schneider Electric NSYPLA553TG 7035 Fs Pol 500X500X320 Glazed

SKU:

NSYPLA553TG

UPC:

3.60648E+12

MPN:

Condition:

New

Door Opening Side:

reversible 120 °)

Electrical Insulation Class:

class II

Color:

Gray RAL 7035)

Standards:

IEC 62208 || UL 508 A

Product Certifications:

UL/cUL listed || Veritas || DNV Marine

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Number Of Doors:

1

Mercury Free:

Yes

Circularity Profile:

N/A

Enclosure Nominal Height:

500 mm

Ambient Air Temperature For Storage:

-35-90 °C

Door Type:

transparent front

Device Composition:

1 top part || 1 bottom part || 2 side part || 1 rear panel || 1 door

Product Name:

Thalassa PLA

Ip Degree Of Protection:

IP65 IEC 60529 completely sealed)

Environmental Disclosure:

ENVPEP110505EN

Device Application:

multi-purpose

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Rohs Exemption Information:

Yes

Sustainable Offer Status:

Green Premium product

Material:

polyester reinforced with fibreglass

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Ik Degree Of Protection:

IK08 IEC 62262 glazed door)

Body Type:

sealed top and bottom part assembled with side parts

Enclosure Nominal Depth:

320 mm

Accessibility For Operation:

rear || front

Nema Degree Of Protection:

NEMA 1 || NEMA 3S || NEMA 12 || NEMA 13 || NEMA 5 || NEMA 3 || NEMA 3X || NEMA 3R || NEMA 2

Enclosure Mounting:

floor-standing

Product Or Component Type:

suitable enclosure

Lock Type:

2 points lock, 5 mm double-bar

Device Short Name:

PLA

Range:

Thalassa

Fire Resistance:

960 °C IEC 62208

Removable Parts:

door by hinges || rear panel by fixing element

Enclosure Nominal Width:

500 mm

Datasheet:

View
