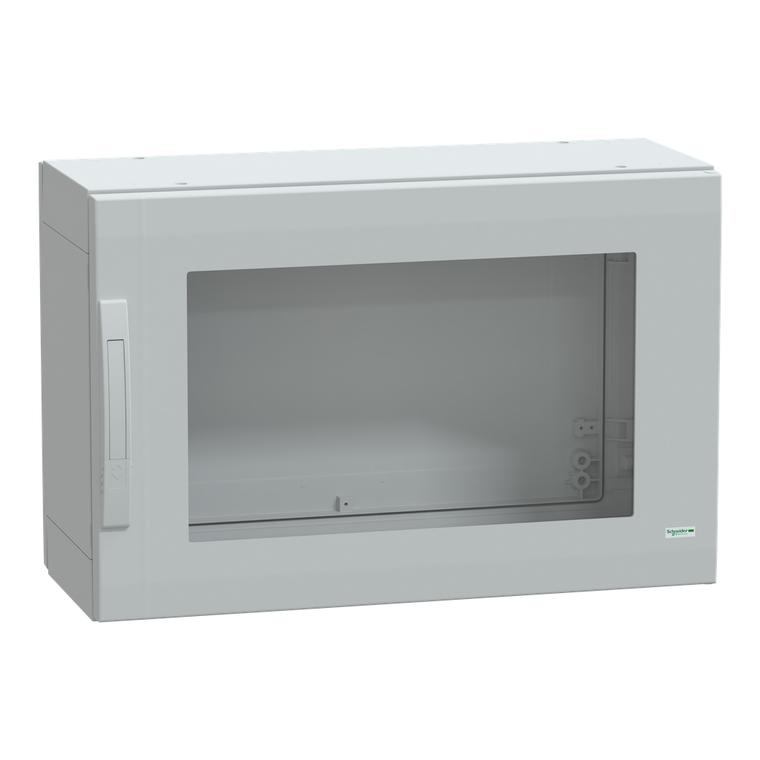

Schneider Electric NSYPLA573TG 7035 Fs Pol 500X750X320 Glazed

SKU:

NSYPLA573TG

UPC:

3.60648E+12

MPN:

Condition:

New

Door Type:

transparent front

Mercury Free:

Yes

Fire Resistance:

960 °C IEC 62208

Body Type:

sealed top and bottom part assembled with side parts

Device Short Name:

PLA

Product Or Component Type:

suitable enclosure

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Enclosure Mounting:

floor-standing

Door Opening Side:

reversible 120 °)

Ip Degree Of Protection:

IP65 IEC 60529 completely sealed)

Electrical Insulation Class:

class II

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Lock Type:

2 points lock, 5 mm double-bar

Ambient Air Temperature For Storage:

-35-90 °C

Removable Parts:

door by hinges || rear panel by fixing element

Number Of Doors:

1

Device Application:

multi-purpose

Environmental Disclosure:

ENVPEP110505EN

Circularity Profile:

N/A

Enclosure Nominal Height:

500 mm

Nema Degree Of Protection:

NEMA 3R || NEMA 3 || NEMA 12 || NEMA 3S || NEMA 2 || NEMA 5 || NEMA 1 || NEMA 3X || NEMA 13

Device Composition:

1 top part || 1 bottom part || 2 side part || 1 rear panel || 1 door

Range:

Thalassa

Enclosure Nominal Depth:

320 mm

Accessibility For Operation:

rear || front

Ik Degree Of Protection:

IK08 IEC 62262 glazed door)

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Color:

Gray RAL 7035)

Sustainable Offer Status:

Green Premium product

Standards:

UL 508 A || IEC 62208

Product Name:

Thalassa PLA

Rohs Exemption Information:

Yes

Enclosure Nominal Width:

750 mm

Product Certifications:

UL/cUL listed || Veritas || DNV Marine

Material:

polyester reinforced with fibreglass

Catalog:

View

Datasheet:

View
