Schneider Electric

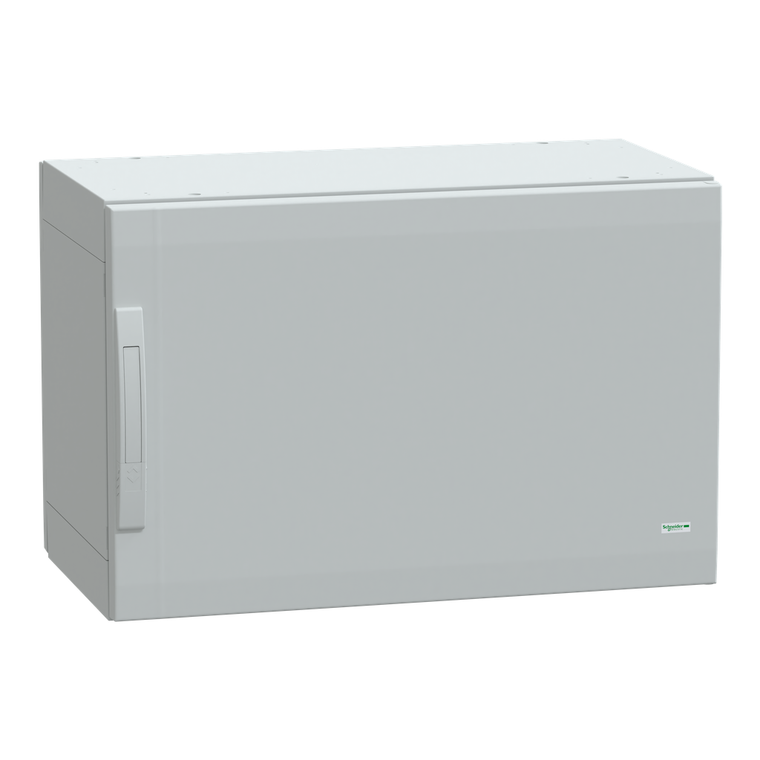

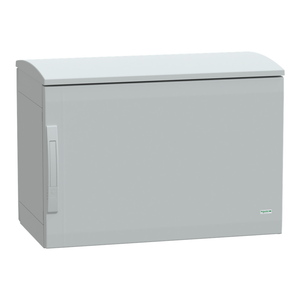

Schneider Electric NSYPLA574G 7035 Fs Pol 500X750X420

SKU:

NSYPLA574G

UPC:

3.60648E+12

MPN:

Condition:

New

Door Type:

Solid front

Ambient Air Temperature For Storage:

-35-90 °C

Ik Degree Of Protection:

IK10 IEC 62262 plain door)

Electrical Insulation Class:

class II

Sustainable Offer Status:

Green Premium product

Ip Degree Of Protection:

IP65 IEC 60529 completely sealed)

Color:

Gray RAL 7035)

Mercury Free:

Yes

Door Opening Side:

reversible 120 °)

Removable Parts:

door by hinges || rear panel by fixing element

Nema Degree Of Protection:

NEMA 12 || NEMA 1 || NEMA 13 || NEMA 3X || NEMA 5 || NEMA 3S || NEMA 2 || NEMA 3 || NEMA 3R

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Product Certifications:

DNV Marine || Veritas || UL/cUL listed

Material:

polyester reinforced with fibreglass

Enclosure Mounting:

floor-standing

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Enclosure Nominal Height:

500 mm

Range:

Thalassa

Product Name:

Thalassa PLA

Enclosure Nominal Depth:

420 mm

Enclosure Nominal Width:

750 mm

Rohs Exemption Information:

Yes

Accessibility For Operation:

front || rear

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Body Type:

sealed top and bottom part assembled with side parts

Standards:

IEC 62208 || UL 508 A

Device Short Name:

PLA

Lock Type:

2 points lock, 5 mm double-bar

Device Application:

multi-purpose

Environmental Disclosure:

ENVPEP110505EN

Device Composition:

1 top part || 1 bottom part || 2 side part || 1 rear panel || 1 door

Number Of Doors:

1

Product Or Component Type:

suitable enclosure

Circularity Profile:

N/A

Fire Resistance:

960 °C IEC 62208
