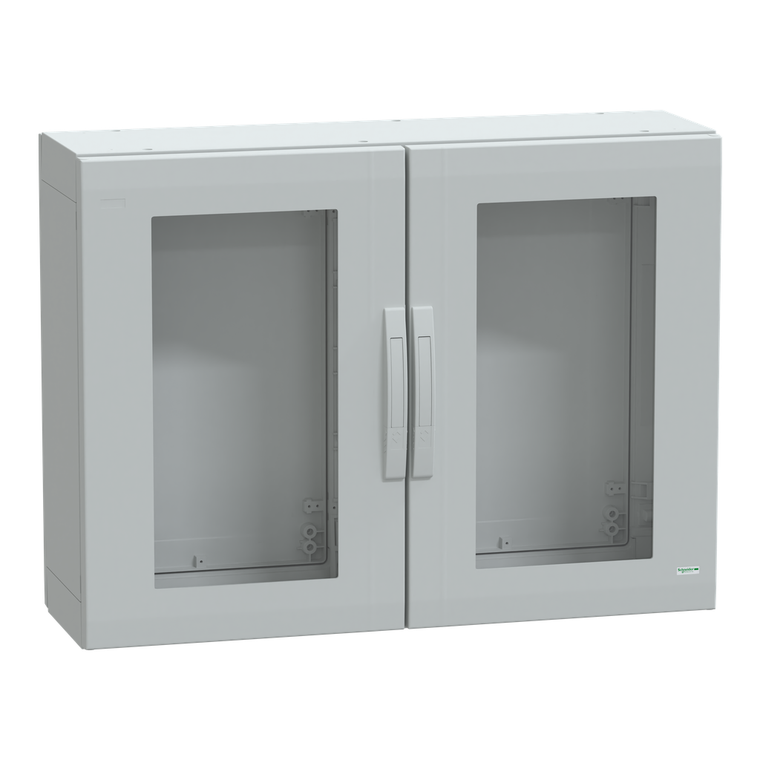

Schneider Electric NSYPLA7103TG 7035 Fs Pol 750X1000X320 Glazed

SKU:

NSYPLA7103TG

UPC:

3.60648E+12

MPN:

Condition:

New

Material:

polyester reinforced with fibreglass

Enclosure Nominal Depth:

320 mm

Enclosure Nominal Height:

750 mm

Electrical Insulation Class:

class II

Device Application:

multi-purpose

Circularity Profile:

N/A

Sustainable Offer Status:

Green Premium product

Door Opening Side:

right and left 120 °)

Device Short Name:

PLA

Ip Degree Of Protection:

IP65 IEC 60529 completely sealed)

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Product Or Component Type:

suitable enclosure

Mercury Free:

Yes

Ik Degree Of Protection:

IK08 IEC 62262 glazed door)

Product Name:

Thalassa PLA

Enclosure Nominal Width:

1000 mm

Standards:

UL 508 A || IEC 62208

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Accessibility For Operation:

front || rear

Device Composition:

1 top part || 1 bottom part || 2 side part || 2 door || 2 rear panel

Nema Degree Of Protection:

NEMA 2 || NEMA 1 || NEMA 12 || NEMA 13

Product Certifications:

UL/cUL listed || Veritas || DNV Marine

Enclosure Mounting:

floor-standing

Range:

Thalassa

Number Of Doors:

2

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Rohs Exemption Information:

Yes

Removable Parts:

door by hinges || rear panel by fixing element

Body Type:

sealed top and bottom part assembled with side parts

Fire Resistance:

960 °C IEC 62208

Lock Type:

2 points lock, 5 mm double-bar

Color:

Gray RAL 7035)

Ambient Air Temperature For Storage:

-35-90 °C

Door Type:

transparent front

Environmental Disclosure:

ENVPEP110505EN
