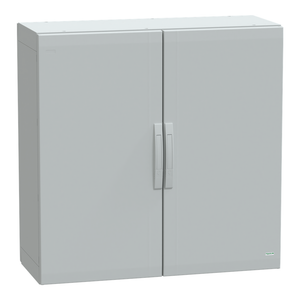

Schneider Electric NSYPLAT10104G 7035 Fs Pol Canopy 1000X1000X420

SKU:

NSYPLAT10104G

UPC:

3606480775161

MPN:

Condition:

New

Range:

Thalassa

Door Opening Side:

right and left 120 °)

Door Type:

Solid front

Material:

polyester reinforced with fibreglass

Sustainable Offer Status:

Green Premium product

Enclosure Nominal Width:

1000 mm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Device Application:

multi-purpose

Color:

Gray RAL 7035)

Product Certifications:

Veritas

Product Or Component Type:

suitable enclosure

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Enclosure Nominal Height:

1000 mm

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Lock Type:

4 points lock, handle with 5 mm double bar insert

Fire Resistance:

960 °C IEC 62208

Removable Parts:

door by hinges || rear panel by fixing element || canopy by fixing element

Accessibility For Operation:

top || front || rear

Ik Degree Of Protection:

IK10 IEC 62262 plain door)

Environmental Disclosure:

ENVPEP110505EN

Device Composition:

1 top part || 1 bottom part || 2 side part || 2 door || 2 rear panel || 1 canopy

Number Of Doors:

2

Standards:

IEC 62208

Ip Degree Of Protection:

IP44 IEC 60529 with ventilated canopy)

Electrical Insulation Class:

class II

Body Type:

open top and sealed bottom part assembled with side parts

Circularity Profile:

N/A

Device Short Name:

PLAT

Enclosure Mounting:

floor-standing

Enclosure Nominal Depth:

420 mm

Mercury Free:

Yes

Product Name:

Thalassa PLA

Ambient Air Temperature For Storage:

-35-90 °C

Rohs Exemption Information:

Yes
