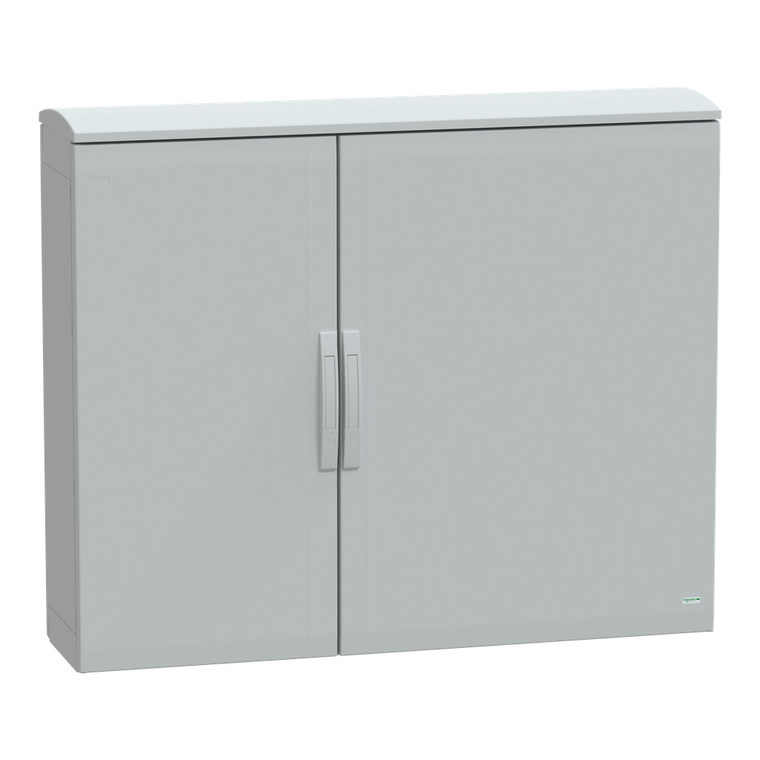

Schneider Electric NSYPLAT10123G 7035 Fs Pol Canopy 1000X1250X320

SKU:

NSYPLAT10123G

UPC:

3.60648E+12

MPN:

Condition:

New

Fire Resistance:

960 °C IEC 62208

Device Short Name:

PLAT

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Device Composition:

1 top part || 1 bottom part || 2 side part || 2 door || 2 rear panel || 1 canopy

Number Of Doors:

2

Removable Parts:

door by hinges || rear panel by fixing element || canopy by fixing element

Enclosure Nominal Width:

1250 mm

Product Certifications:

Veritas

Product Name:

Thalassa PLA

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Enclosure Nominal Depth:

320 mm

Rohs Exemption Information:

Yes

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Electrical Insulation Class:

class II

Mercury Free:

Yes

Enclosure Nominal Height:

1000 mm

Product Or Component Type:

suitable enclosure

Enclosure Mounting:

floor-standing

Sustainable Offer Status:

Green Premium product

Door Opening Side:

right and left 120 °)

Range:

Thalassa

Lock Type:

4 points lock, handle with 5 mm double bar insert

Circularity Profile:

N/A

Ik Degree Of Protection:

IK10 IEC 62262 plain door)

Material:

polyester reinforced with fibreglass

Accessibility For Operation:

top || rear || front

Body Type:

open top and sealed bottom part assembled with side parts

Environmental Disclosure:

ENVPEP110505EN

Ip Degree Of Protection:

IP44 IEC 60529 with ventilated canopy)

Device Application:

multi-purpose

Standards:

IEC 62208

Door Type:

Solid front

Ambient Air Temperature For Storage:

-35-90 °C

Color:

Gray RAL 7035)
