Schneider Electric

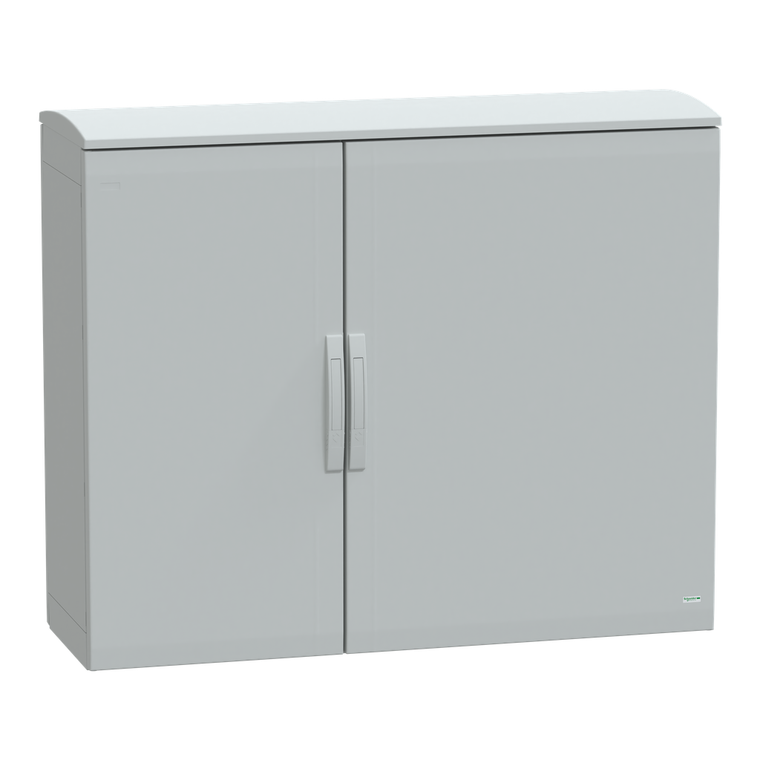

Schneider Electric NSYPLAT10124G 7035 Fs Pol Canopy 1000X1250X420

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric NSYPLAT10124G 7035 Fs Pol Canopy 1000X1250X420

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYPLAT10124G

UPC:

3606480775185

MPN:

Condition:

New

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Device Composition:

1 top part || 1 bottom part || 2 side part || 2 door || 2 rear panel || 1 canopy

Ik Degree Of Protection:

IK10 IEC 62262 plain door)

Enclosure Mounting:

floor-standing

Mercury Free:

Yes

Product Or Component Type:

suitable enclosure

Removable Parts:

door by hinges || rear panel by fixing element || canopy by fixing element

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Ambient Air Temperature For Storage:

-35-90 °C

Rohs Exemption Information:

Yes

Number Of Doors:

2

Door Opening Side:

right and left 120 °)

Range:

Thalassa

Product Name:

Thalassa PLA

Color:

Gray RAL 7035)

Device Short Name:

PLAT

Ip Degree Of Protection:

IP44 IEC 60529 with ventilated canopy)

Lock Type:

4 points lock, handle with 5 mm double bar insert

Accessibility For Operation:

front || top || rear

Circularity Profile:

N/A

Sustainable Offer Status:

Green Premium product

Body Type:

open top and sealed bottom part assembled with side parts

Enclosure Nominal Height:

1000 mm

Electrical Insulation Class:

class II

Device Application:

multi-purpose

Material:

polyester reinforced with fibreglass

Enclosure Nominal Width:

1250 mm

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Fire Resistance:

960 °C IEC 62208

Door Type:

Solid front

Standards:

IEC 62208

Product Certifications:

Veritas

Enclosure Nominal Depth:

420 mm

Environmental Disclosure:

ENVPEP110505EN

Datasheet:

View
