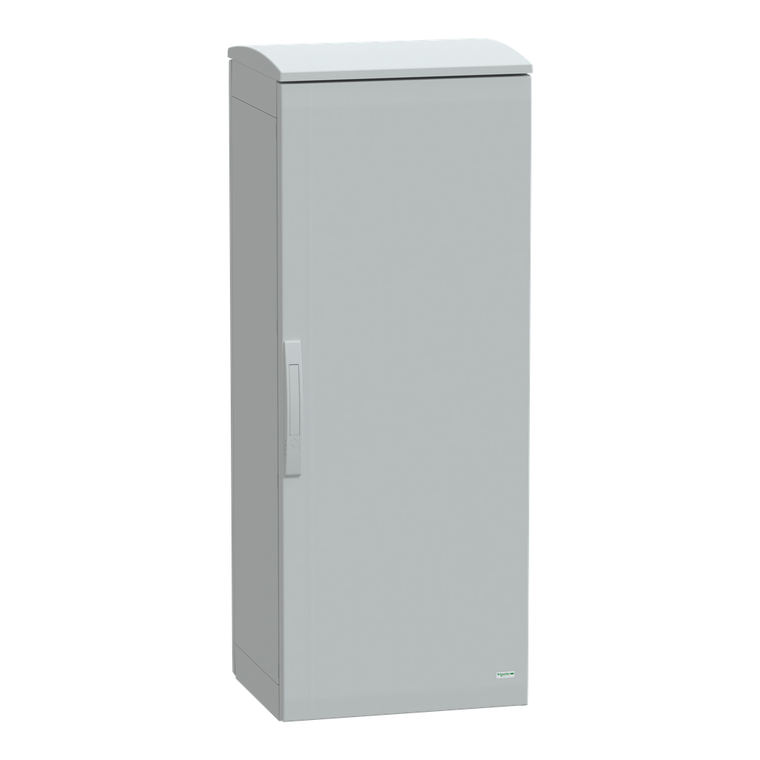

Schneider Electric NSYPLAT1254G 7035 Fs Pol Canopy 1250X500X420

SKU:

NSYPLAT1254G

UPC:

3606480775284

MPN:

Condition:

New

Range:

Thalassa

Door Opening Side:

reversible 120 °)

Device Short Name:

PLAT

Material:

polyester reinforced with fibreglass

Device Application:

multi-purpose

Door Type:

Solid front

Ik Degree Of Protection:

IK10 IEC 62262 plain door)

Enclosure Mounting:

floor-standing

Enclosure Nominal Depth:

420 mm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Mercury Free:

Yes

Environmental Disclosure:

ENVPEP110505EN

Enclosure Nominal Height:

1250 mm

Color:

Gray RAL 7035)

Circularity Profile:

N/A

Product Name:

Thalassa PLA

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Removable Parts:

door by hinges || rear panel by fixing element || canopy by fixing element

Enclosure Nominal Width:

500 mm

Fire Resistance:

960 °C IEC 62208

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Rohs Exemption Information:

Yes

Number Of Doors:

1

Device Composition:

1 top part || 1 bottom part || 2 side part || 1 rear panel || 1 door || 1 canopy

Body Type:

open top and sealed bottom part assembled with side parts

Lock Type:

4 points lock, handle with 5 mm double bar insert

Accessibility For Operation:

front || top || rear

Product Certifications:

Veritas

Electrical Insulation Class:

class II

Product Or Component Type:

suitable enclosure

Ambient Air Temperature For Storage:

-35-90 °C

Ip Degree Of Protection:

IP44 IEC 60529 with ventilated canopy)

Sustainable Offer Status:

Green Premium product

Standards:

IEC 62208
