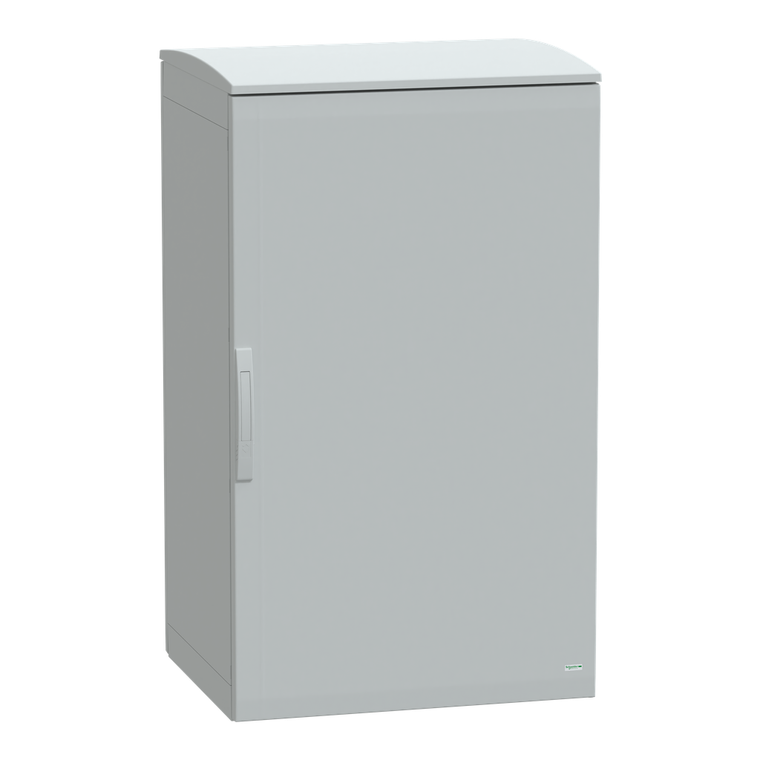

Schneider Electric NSYPLAT1276G 7035 Fs Pol Canopy 1250X750X620

SKU:

NSYPLAT1276G

UPC:

3606485434353

MPN:

Condition:

New

Lock Type:

4 points lock, handle with 5 mm double bar insert

Sustainable Offer Status:

Green Premium product

Accessibility For Operation:

rear || front || top

Number Of Doors:

1

Enclosure Nominal Depth:

620 mm

Device Composition:

1 top part || 1 bottom part || 2 side part || 1 rear panel || 1 door || 1 canopy

Product Or Component Type:

suitable enclosure

Product Name:

Thalassa PLA

Body Type:

open top and sealed bottom part assembled with side parts

Electrical Insulation Class:

class II

Material:

polyester reinforced with fibreglass

Standards:

IEC 62208

Device Application:

multi-purpose

Environmental Disclosure:

ENVPEP110505EN

Fire Resistance:

960 °C IEC 62208

Door Type:

Solid front

Rohs Exemption Information:

Yes

Ik Degree Of Protection:

IK10 IEC 62262 plain door)

Removable Parts:

door by hinges || rear panel by fixing element || canopy by fixing element

Circularity Profile:

N/A

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Range:

Thalassa

Door Opening Side:

reversible 120 °)

Ambient Air Temperature For Storage:

-35-90 °C

Color:

Gray RAL 7035)

Device Short Name:

PLAT

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Enclosure Nominal Height:

1250 mm

Mercury Free:

Yes

Enclosure Mounting:

floor-standing

Enclosure Nominal Width:

750 mm

Ip Degree Of Protection:

IP44 IEC 60529 with ventilated canopy)

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Product Certifications:

Veritas
