Schneider Electric

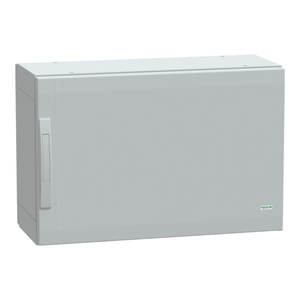

Schneider Electric NSYPLAT573G 7035 Fs Pol Canopy 500X750X320

SKU:

NSYPLAT573G

UPC:

3606480775451

MPN:

Condition:

New

Door Type:

Solid front

Enclosure Mounting:

floor-standing

Device Short Name:

PLAT

Sustainable Offer Status:

Green Premium product

Ip Degree Of Protection:

IP44 IEC 60529 with ventilated canopy)

Mercury Free:

Yes

Range:

Thalassa

Enclosure Nominal Height:

500 mm

Ambient Air Temperature For Storage:

-35-90 °C

Lock Type:

2 points handle lock, 5 mm double-bar

Circularity Profile:

N/A

Color:

Gray RAL 7035)

Enclosure Nominal Width:

750 mm

Number Of Doors:

1

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Enclosure Nominal Depth:

320 mm

Accessibility For Operation:

top || front || rear

Device Composition:

1 top part || 1 bottom part || 2 side part || 1 rear panel || 1 door || 1 canopy

Environmental Disclosure:

ENVPEP110505EN

Electrical Insulation Class:

class II

Ik Degree Of Protection:

IK10 IEC 62262 plain door)

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Material:

polyester reinforced with fibreglass

Product Or Component Type:

suitable enclosure

Door Opening Side:

reversible 120 °)

Product Certifications:

Veritas

Fire Resistance:

960 °C IEC 62208

Standards:

IEC 62208

Rohs Exemption Information:

Yes

Product Name:

Thalassa PLA

Body Type:

open top and sealed bottom part assembled with side parts

Removable Parts:

door by hinges || rear panel by fixing element || canopy by fixing element

Device Application:

multi-purpose
