Schneider Electric

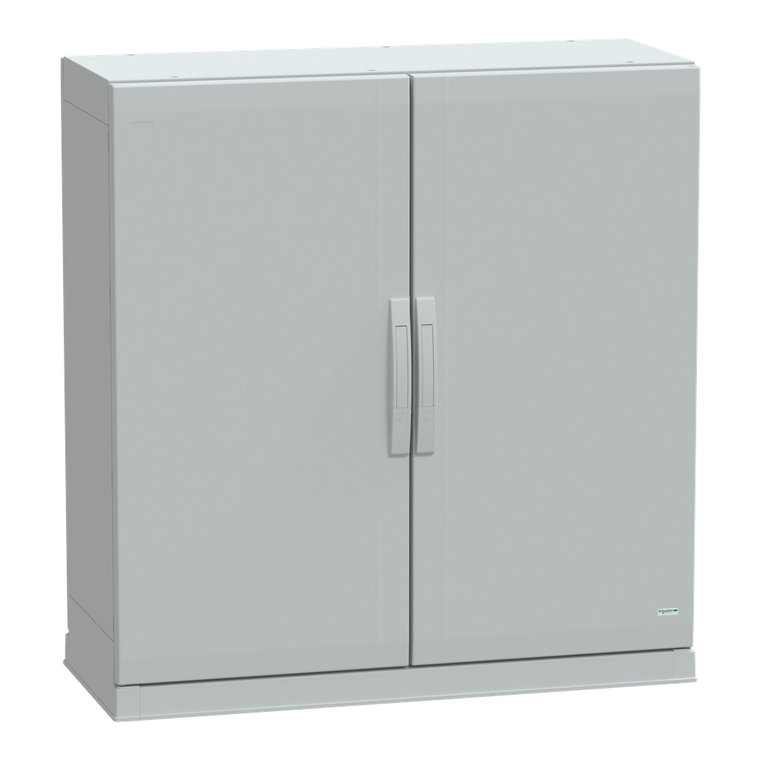

Schneider Electric NSYPLAZ10104G 7035 Fs Pol Plinth 1000X1000X420

SKU:

NSYPLAZ10104G

UPC:

3606480775567

MPN:

Condition:

New

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Product Certifications:

Veritas

Door Type:

Solid front

Fire Resistance:

960 °C IEC 62208

Standards:

IEC 62208

Accessibility For Operation:

front || rear || bottom

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Ambient Air Temperature For Storage:

-35-90 °C

Environmental Disclosure:

ENVPEP110505EN

Lock Type:

4 points lock, handle with 5 mm double bar insert

Body Type:

sealed top and open bottom part assembled with side parts

Rohs Exemption Information:

Yes

Mercury Free:

Yes

Circularity Profile:

N/A

Device Composition:

1 top part || 1 bottom part || 2 side part || 2 door || 2 rear panel || 1 plinth

Enclosure Nominal Width:

1000 mm

Enclosure Mounting:

floor-standing

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Door Opening Side:

right and left 120 °)

Product Name:

Thalassa PLA

Device Short Name:

PLAZ

Sustainable Offer Status:

Green Premium product

Enclosure Nominal Height:

1000 mm

Ip Degree Of Protection:

IP54 IEC 60529 plinth type open bottom)

Range:

Thalassa

Color:

Gray RAL 7035)

Ik Degree Of Protection:

IK10 IEC 62262 plain door)

Device Application:

multi-purpose

Product Or Component Type:

suitable enclosure

Material:

polyester reinforced with fibreglass

Enclosure Nominal Depth:

420 mm

Electrical Insulation Class:

class II

Removable Parts:

door by hinges || rear panel by fixing element

Number Of Doors:

2

Catalog:

View

Datasheet:

View
