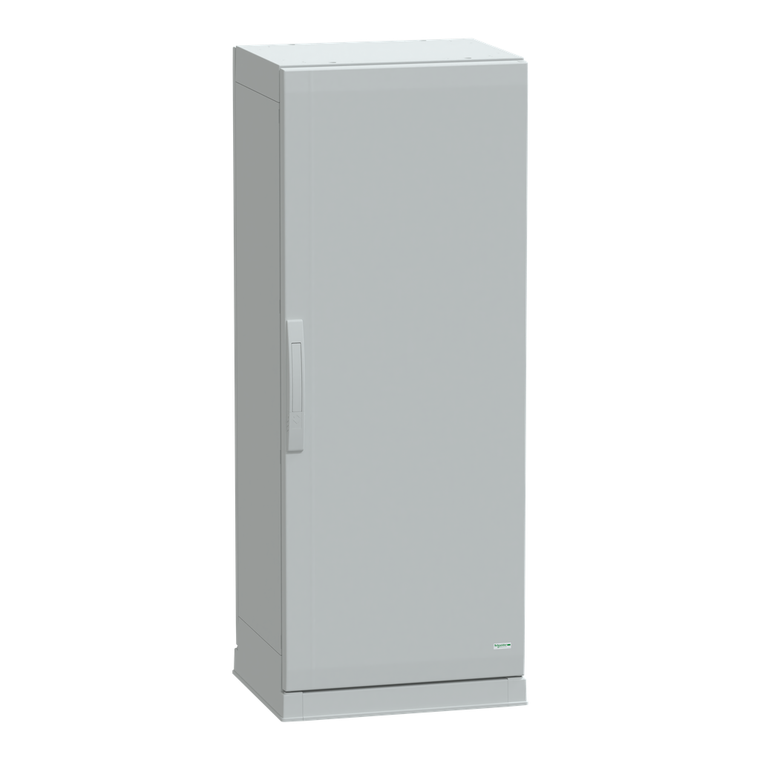

Schneider Electric NSYPLAZ1254G 7035 Fs Pol Plinth 1250X500X420

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYPLAZ1254G 7035 Fs Pol Plinth 1250X500X420

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYPLAZ1254G

UPC:

3606480775680

MPN:

Condition:

New

Number Of Doors:

1

Range:

Thalassa

Door Opening Side:

reversible 120 °)

Product Or Component Type:

suitable enclosure

Removable Parts:

door by hinges || rear panel by fixing element

Enclosure Mounting:

floor-standing

Material:

polyester reinforced with fibreglass

Standards:

IEC 62208

Enclosure Nominal Width:

500 mm

Circularity Profile:

N/A

Enclosure Nominal Height:

1250 mm

Rohs Exemption Information:

Yes

Door Type:

Solid front

Product Certifications:

Veritas

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Enclosure Nominal Depth:

420 mm

Accessibility For Operation:

bottom || front || rear

Mercury Free:

Yes

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Lock Type:

4 points lock, handle with 5 mm double bar insert

Body Type:

sealed top and open bottom part assembled with side parts

Ik Degree Of Protection:

IK10 IEC 62262 plain door)

Fire Resistance:

960 °C IEC 62208

Device Short Name:

PLAZ

Device Application:

multi-purpose

Color:

Gray RAL 7035)

Electrical Insulation Class:

class II

Ambient Air Temperature For Storage:

-35-90 °C

Sustainable Offer Status:

Green Premium product

Device Composition:

1 top part || 1 bottom part || 2 side part || 1 rear panel || 1 door || 1 plinth

Ip Degree Of Protection:

IP54 IEC 60529 plinth type open bottom)

Product Name:

Thalassa PLA

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Environmental Disclosure:

ENVPEP110505EN

Datasheet:

View
