Schneider Electric

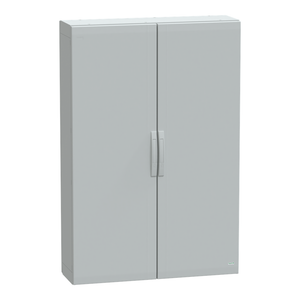

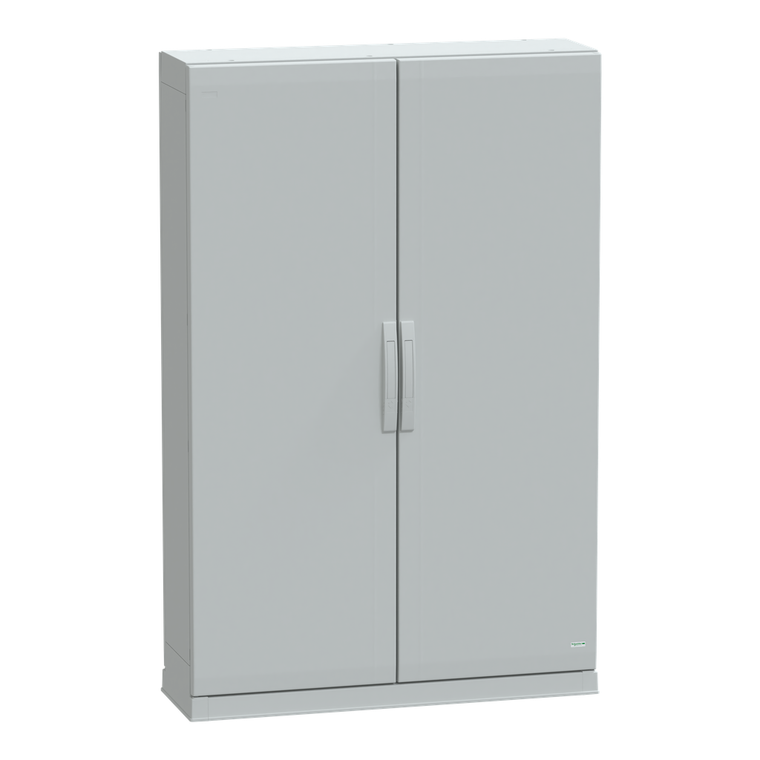

Schneider Electric NSYPLAZ15103G 7035 Fs Pol Plinth 1500X1000X320

SKU:

NSYPLAZ15103G

UPC:

3606480775710

MPN:

Condition:

New

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Fire Resistance:

960 °C IEC 62208

Environmental Disclosure:

ENVPEP110505EN

Product Name:

Thalassa PLA

Device Application:

multi-purpose

Material:

polyester reinforced with fibreglass

Device Short Name:

PLAZ

Ambient Air Temperature For Storage:

-35-90 °C

Standards:

IEC 62208

Door Type:

Solid front

Ik Degree Of Protection:

IK10 IEC 62262 plain door)

Removable Parts:

door by hinges || rear panel by fixing element

Ip Degree Of Protection:

IP54 IEC 60529 plinth type open bottom)

Electrical Insulation Class:

class II

Accessibility For Operation:

bottom || front || rear

Rohs Exemption Information:

Yes

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Lock Type:

4 points lock, handle with 5 mm double bar insert

Product Or Component Type:

suitable enclosure

Door Opening Side:

right and left 120 °)

Range:

Thalassa

Device Composition:

1 top part || 1 bottom part || 2 side part || 2 door || 2 rear panel || 1 plinth

Enclosure Mounting:

floor-standing

Product Certifications:

Veritas

Number Of Doors:

2

Color:

Gray RAL 7035)

Body Type:

sealed top and open bottom part assembled with side parts

Enclosure Nominal Depth:

320 mm

Enclosure Nominal Width:

1000 mm

Enclosure Nominal Height:

1500 mm

Mercury Free:

Yes

Circularity Profile:

N/A

Sustainable Offer Status:

Green Premium product

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Datasheet:

View
