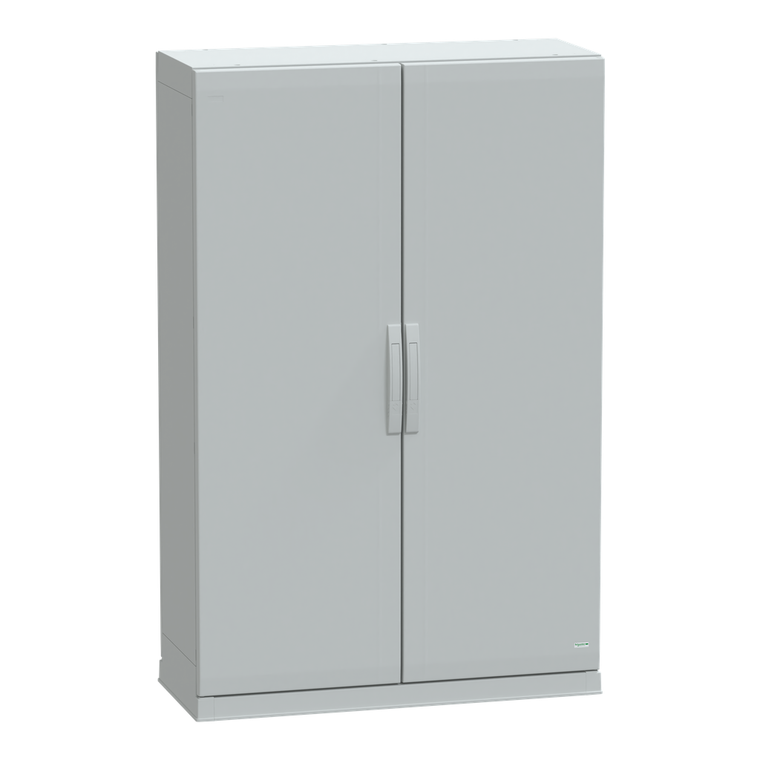

Schneider Electric NSYPLAZ15104G 7035 Fs Pol Plinth 1500X1000X420

SKU:

NSYPLAZ15104G

UPC:

3.60648E+12

MPN:

Condition:

New

Fire Resistance:

960 °C IEC 62208

Material:

polyester reinforced with fibreglass

Ik Degree Of Protection:

IK10 IEC 62262 plain door)

Product Name:

Thalassa PLA

Environmental Disclosure:

ENVPEP110505EN

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Enclosure Mounting:

floor-standing

Rohs Exemption Information:

Yes

Sustainable Offer Status:

Green Premium product

Device Composition:

1 top part || 1 bottom part || 2 side part || 2 door || 2 rear panel || 1 plinth

Product Certifications:

Veritas

Range:

Thalassa

Device Short Name:

PLAZ

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Circularity Profile:

N/A

Mercury Free:

Yes

Number Of Doors:

2

Body Type:

sealed top and open bottom part assembled with side parts

Electrical Insulation Class:

class II

Color:

Gray RAL 7035)

Ambient Air Temperature For Storage:

-35-90 °C

Ip Degree Of Protection:

IP54 IEC 60529 plinth type open bottom)

Door Type:

Solid front

Removable Parts:

door by hinges || rear panel by fixing element

Lock Type:

4 points lock, handle with 5 mm double bar insert

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Enclosure Nominal Width:

1000 mm

Product Or Component Type:

suitable enclosure

Device Application:

multi-purpose

Door Opening Side:

right and left 120 °)

Enclosure Nominal Depth:

420 mm

Standards:

IEC 62208

Enclosure Nominal Height:

1500 mm

Accessibility For Operation:

bottom || rear || front

Datasheet:

View
