Schneider Electric NSYPLAZ15124G 7035 Fs Pol Plinth 1500X1250X420
Schneider Electric
$2,104.77
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric NSYPLAZ15124G 7035 Fs Pol Plinth 1500X1250X420

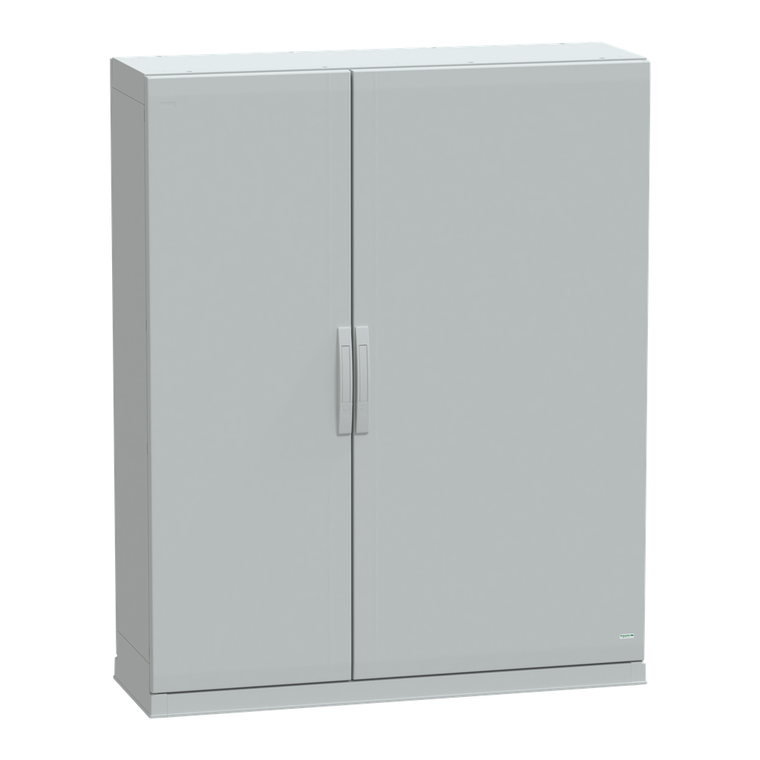

Thalassa PLA Floor standing polyester enclosure, version PLAZ. 1500 x 1250 x 420 mm. With open bottom plinth. 4 point door locking system with 5-mm double-bar locks. Polyester reinforced with fibreglass body. Protection IP 54, IK10, Grey RAL 7035.
- Enclosure Nominal Width:
- 1250 mm
- Door Type:
- Solid front
- Device Short Name:
- PLAZ
- Device Composition:
- 1 top part || 1 bottom part || 2 side part || 2 door || 2 rear panel || 1 plinth
- Mercury Free:
- Yes
- Removable Parts:
- door by hinges || rear panel by fixing element
- Standards:
- IEC 62208
- Product Or Component Type:
- suitable enclosure
- Accessibility For Operation:
- bottom || rear || front
- Enclosure Nominal Depth:
- 420 mm
- Product Name:
- Thalassa PLA
- Electrical Insulation Class:
- class II
- Product Certifications:
- Veritas
- Range:
- Thalassa
- Ip Degree Of Protection:
- IP54 IEC 60529 plinth type open bottom)
- Body Type:
- sealed top and open bottom part assembled with side parts
- Ambient Air Temperature For Storage:
- -35-90 °C
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Ik Degree Of Protection:
- IK10 IEC 62262 plain door)
- Lock Type:
- 4 points lock, handle with 5 mm double bar insert
- Fire Resistance:
- 960 °C IEC 62208
- Door Opening Side:
- right and left 120 °)
- Sustainable Offer Status:
- Green Premium product
- Material:
- polyester reinforced with fibreglass
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Device Application:
- multi-purpose
- Enclosure Nominal Height:
- 1500 mm
- Number Of Doors:
- 2
- Color:
- Gray RAL 7035)
- Circularity Profile:
- N/A
- Environmental Disclosure:
- ENVPEP110505EN
- Rohs Exemption Information:
- Yes
- Enclosure Mounting:
- floor-standing
- Catalog:
- View
- Datasheet:
- View
