Schneider Electric

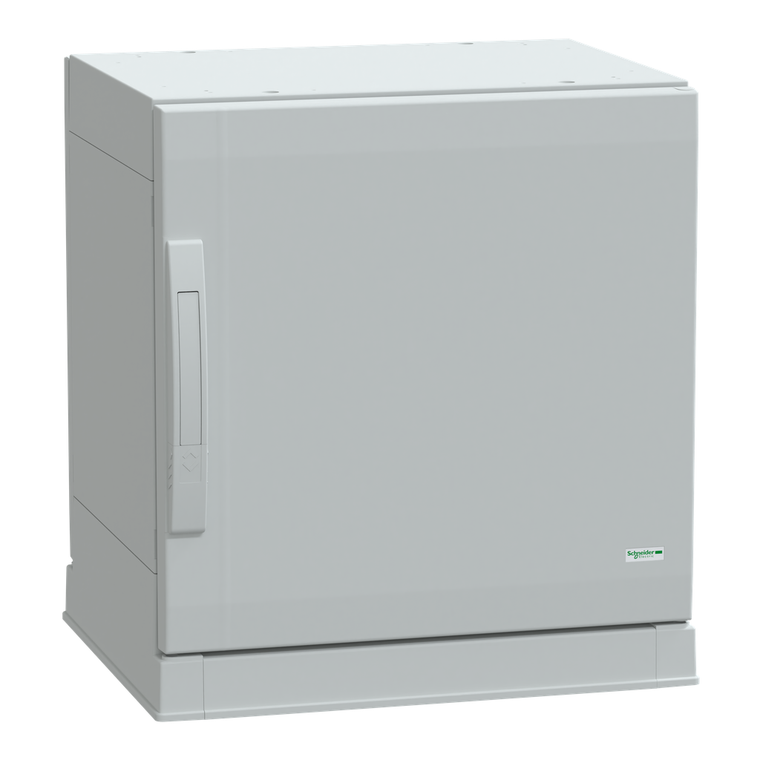

Schneider Electric NSYPLAZ554G 7035 Fs Pol Plinth 500X500X420

SKU:

NSYPLAZ554G

UPC:

3606480775840

MPN:

Condition:

New

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Body Type:

sealed top and open bottom part assembled with side parts

Door Opening Side:

reversible 120 °)

Environmental Disclosure:

ENVPEP110505EN

Lock Type:

2 points handle lock, 5 mm double-bar

Removable Parts:

door by hinges || rear panel by fixing element

Ik Degree Of Protection:

IK10 IEC 62262 plain door)

Sustainable Offer Status:

Green Premium product

Enclosure Nominal Depth:

420 mm

Ambient Air Temperature For Storage:

-35-90 °C

Enclosure Nominal Height:

500 mm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Device Application:

multi-purpose

Product Certifications:

Veritas

Enclosure Nominal Width:

500 mm

Product Or Component Type:

suitable enclosure

Door Type:

Solid front

Enclosure Mounting:

floor-standing

Device Composition:

1 top part || 1 bottom part || 2 side part || 1 rear panel || 1 door || 1 plinth

Fire Resistance:

960 °C IEC 62208

Number Of Doors:

1

Device Short Name:

PLAZ

Accessibility For Operation:

front || bottom || rear

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Ip Degree Of Protection:

IP54 IEC 60529 plinth type open bottom)

Standards:

IEC 62208

Product Name:

Thalassa PLA

Circularity Profile:

N/A

Color:

Gray RAL 7035)

Electrical Insulation Class:

class II

Rohs Exemption Information:

Yes

Material:

polyester reinforced with fibreglass

Range:

Thalassa

Mercury Free:

Yes

Datasheet:

View
