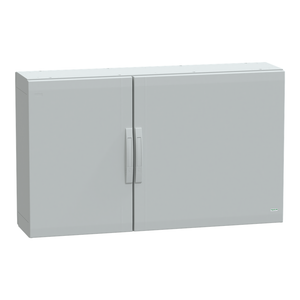

Schneider Electric NSYPLAZ7123G 7035 Fs Pol Plinth 750X1250X320

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYPLAZ7123G 7035 Fs Pol Plinth 750X1250X320

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYPLAZ7123G

UPC:

3.60648E+12

MPN:

Condition:

New

Device Short Name:

PLAZ

Device Application:

multi-purpose

Lock Type:

2 points handle lock, 5 mm double-bar

Body Type:

sealed top and open bottom part assembled with side parts

Door Opening Side:

right and left 120 °)

Ik Degree Of Protection:

IK10 IEC 62262 plain door)

Door Type:

Solid front

Material:

polyester reinforced with fibreglass

Fire Resistance:

960 °C IEC 62208

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Ambient Air Temperature For Storage:

-35-90 °C

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Enclosure Mounting:

floor-standing

Environmental Disclosure:

ENVPEP110505EN

Sustainable Offer Status:

Green Premium product

Standards:

IEC 62208

Enclosure Nominal Depth:

320 mm

Ip Degree Of Protection:

IP54 IEC 60529 plinth type open bottom)

Circularity Profile:

N/A

Number Of Doors:

2

Enclosure Nominal Width:

1250 mm

Product Name:

Thalassa PLA

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Device Composition:

1 top part || 1 bottom part || 2 side part || 2 door || 2 rear panel || 1 plinth

Electrical Insulation Class:

class II

Color:

Gray RAL 7035)

Removable Parts:

door by hinges || rear panel by fixing element

Accessibility For Operation:

bottom || front || rear

Mercury Free:

Yes

Range:

Thalassa

Product Certifications:

Veritas

Rohs Exemption Information:

Yes

Product Or Component Type:

suitable enclosure

Enclosure Nominal Height:

750 mm
