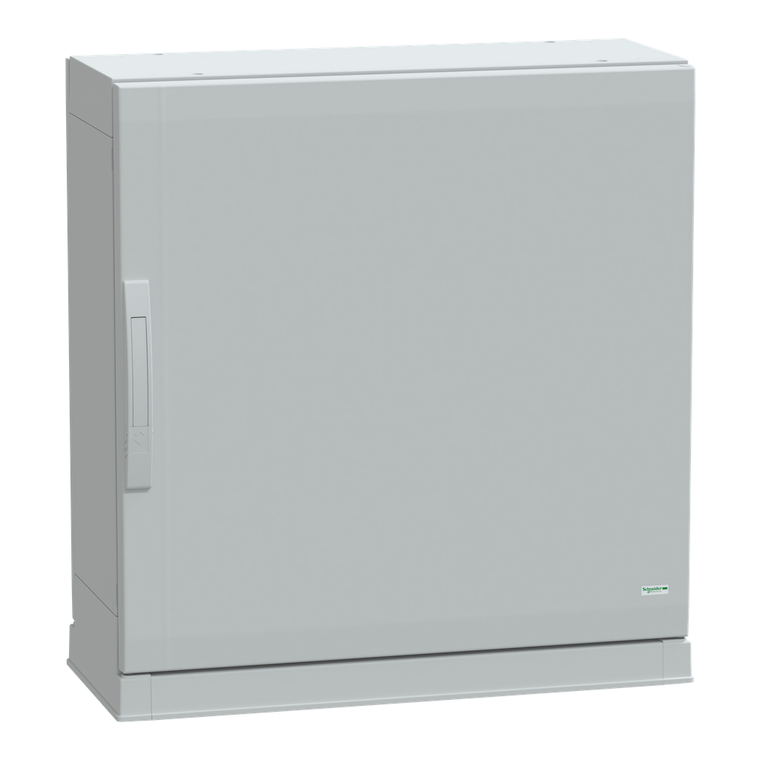

Schneider Electric NSYPLAZ773G 7035 Fs Pol Plinth 750X750X320

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric NSYPLAZ773G 7035 Fs Pol Plinth 750X750X320

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYPLAZ773G

UPC:

3606480775932

MPN:

Condition:

New

Product Or Component Type:

suitable enclosure

Accessibility For Operation:

bottom || front || rear

Lock Type:

2 points handle lock, 5 mm double-bar

Environmental Disclosure:

ENVPEP110505EN

Sustainable Offer Status:

Green Premium product

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Product Name:

Thalassa PLA

Electrical Insulation Class:

class II

Circularity Profile:

N/A

Device Short Name:

PLAZ

Fire Resistance:

960 °C IEC 62208

Door Opening Side:

reversible 120 °)

Enclosure Mounting:

floor-standing

Door Type:

Solid front

Ambient Air Temperature For Storage:

-35-90 °C

Material:

polyester reinforced with fibreglass

Device Application:

multi-purpose

Body Type:

sealed top and open bottom part assembled with side parts

Ip Degree Of Protection:

IP54 IEC 60529 plinth type open bottom)

Enclosure Nominal Depth:

320 mm

Ik Degree Of Protection:

IK10 IEC 62262 plain door)

Product Certifications:

Veritas

Color:

Gray RAL 7035)

Enclosure Nominal Width:

750 mm

Mercury Free:

Yes

Range:

Thalassa

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Standards:

IEC 62208

Rohs Exemption Information:

Yes

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Number Of Doors:

1

Device Composition:

1 top part || 1 bottom part || 2 side part || 1 rear panel || 1 door || 1 plinth

Enclosure Nominal Height:

750 mm

Removable Parts:

door by hinges || rear panel by fixing element

Datasheet:

View
