Schneider Electric NSYPLAZT12104G 7035 Pla Plin+Can1250X1000X420
Schneider Electric
$1,820.12
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric NSYPLAZT12104G 7035 Pla Plin+Can1250X1000X420

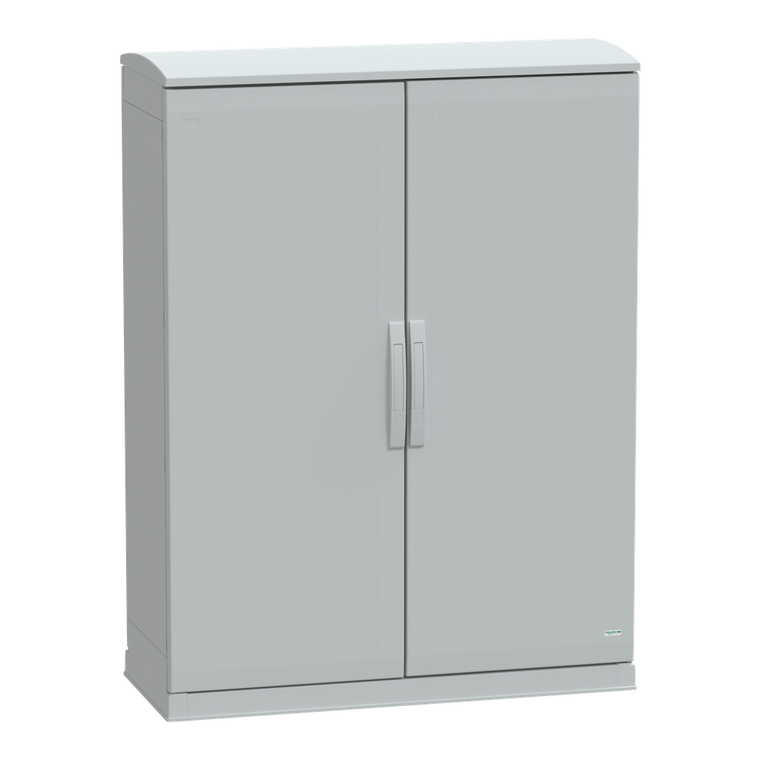

Thalassa PLA Floor standing polyester enclosure, version PLAZT. 1250 x 1000 x 420 mm. With open bottom plinth and ventilated canopy. 4 points door locking system with 5-mm double-bar locks. Polyester reinforced with fibreglass body. Protection IP 54, IK10, Grey RAL 7035.
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Standards:
- IEC 62208
- Product Certifications:
- Veritas
- Ip Degree Of Protection:
- IP44 IEC 60529 with plinth type open bottom part and ventilated canopy)
- Color:
- Gray RAL 7035)
- Fire Resistance:
- 960 °C IEC 62208
- Mercury Free:
- Yes
- Sustainable Offer Status:
- Green Premium product
- Enclosure Nominal Width:
- 1000 mm
- Accessibility For Operation:
- rear || bottom || front || top
- Electrical Insulation Class:
- class II
- Product Or Component Type:
- suitable enclosure
- Number Of Doors:
- 2
- Enclosure Nominal Depth:
- 420 mm
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Door Opening Side:
- right and left 180 °)
- Removable Parts:
- door by hinges || rear panel by fixing element || canopy by fixing element
- Rohs Exemption Information:
- Yes
- Ambient Air Temperature For Storage:
- -35-90 °C
- Material:
- polyester reinforced with fibreglass
- Body Type:
- open top and bottom part assembled with side parts
- Enclosure Nominal Height:
- 1250 mm
- Device Composition:
- 1 top part || 1 bottom part || 2 side part || 2 door || 2 rear panel || 1 canopy || 1 plinth
- Enclosure Mounting:
- floor-standing
- Ik Degree Of Protection:
- IK10 IEC 62262 plain door)
- Device Short Name:
- PLAZT
- Environmental Disclosure:
- ENVPEP110505EN
- Door Type:
- Solid front
- Device Application:
- multi-purpose
- Range:
- Thalassa
- Circularity Profile:
- N/A
- Lock Type:
- 4 points lock, handle with 5 mm double bar insert
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Product Name:
- Thalassa PLA
- Catalog:
- View
- Datasheet:
- View
