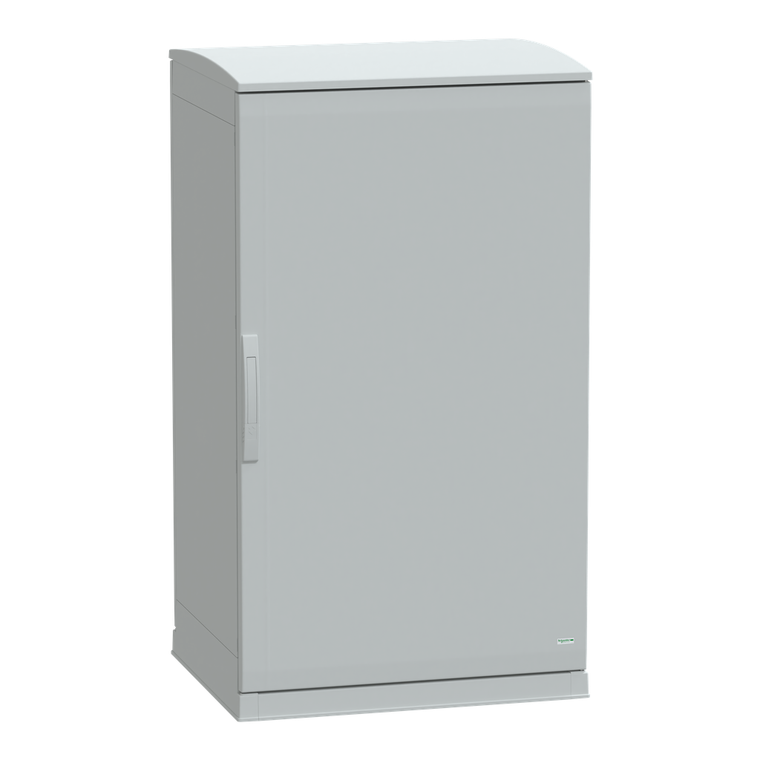

Schneider Electric NSYPLAZT1276G Pol.E.Plin+Can1250X750X620Mm Ip44

SKU:

NSYPLAZT1276G

UPC:

3606480772870

MPN:

Condition:

New

Standards:

IEC 62208

Ip Degree Of Protection:

IP44 IEC 60529 with plinth type open bottom part and ventilated canopy)

Range:

Thalassa

Product Or Component Type:

suitable enclosure

Color:

Gray RAL 7035)

Rohs Exemption Information:

Yes

Ambient Air Temperature For Storage:

-35-90 °C

Environmental Disclosure:

ENVPEP110505EN

Door Opening Side:

reversible 180 °)

Product Certifications:

Veritas

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Enclosure Nominal Height:

1250 mm

Device Composition:

1 top part || 1 bottom part || 2 side part || 1 rear panel || 1 door || 1 canopy || 1 plinth

Enclosure Nominal Width:

750 mm

Device Short Name:

PLAZT

Sustainable Offer Status:

Green Premium product

Body Type:

open top and bottom part assembled with side parts

Accessibility For Operation:

rear || front || top || bottom

Mercury Free:

Yes

Circularity Profile:

N/A

Number Of Doors:

1

Lock Type:

4 points lock, handle with 5 mm double bar insert

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Enclosure Nominal Depth:

620 mm

Ik Degree Of Protection:

IK10 IEC 62262 plain door)

Device Application:

multi-purpose

Door Type:

Solid front

Removable Parts:

door by hinges || rear panel by fixing element || canopy by fixing element

Fire Resistance:

960 °C IEC 62208

Enclosure Mounting:

floor-standing

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Material:

polyester reinforced with fibreglass

Electrical Insulation Class:

class II

Product Name:

Thalassa PLA
