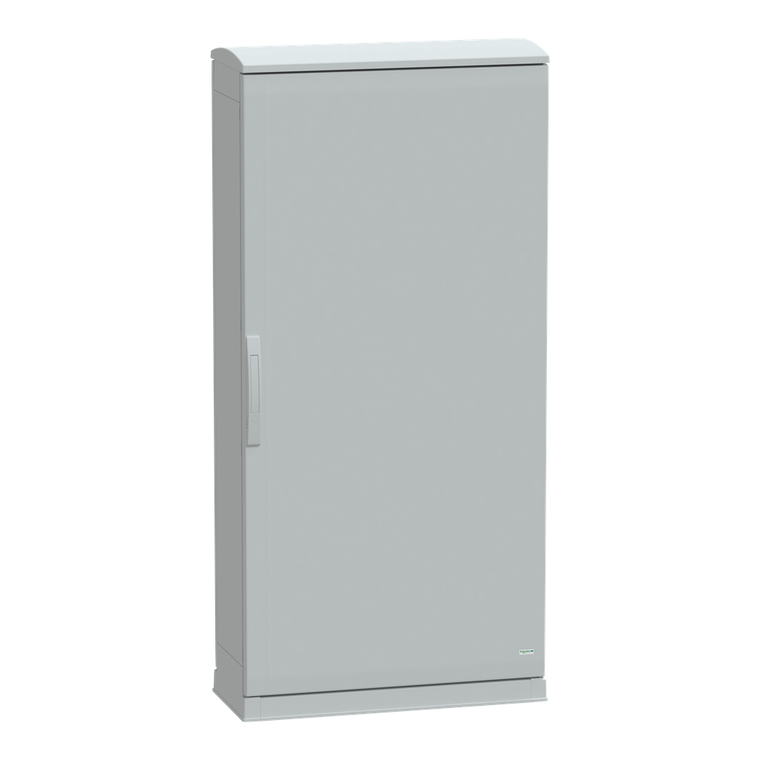

Schneider Electric NSYPLAZT1573G 7035 Pla Plin+Can1500X750X320

SKU:

NSYPLAZT1573G

UPC:

3606480776175

MPN:

Condition:

New

Ambient Air Temperature For Storage:

-35-90 °C

Ip Degree Of Protection:

IP44 IEC 60529 with plinth type open bottom part and ventilated canopy)

Mercury Free:

Yes

Enclosure Nominal Width:

750 mm

Door Type:

Solid front

Color:

Gray RAL 7035)

Sustainable Offer Status:

Green Premium product

Lock Type:

4 points lock, handle with 5 mm double bar insert

Environmental Disclosure:

ENVPEP110505EN

Number Of Doors:

1

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Accessibility For Operation:

top || front || bottom || rear

Enclosure Mounting:

floor-standing

Device Short Name:

PLAZT

Fire Resistance:

960 °C IEC 62208

Device Application:

multi-purpose

Electrical Insulation Class:

class II

Rohs Exemption Information:

Yes

Enclosure Nominal Height:

1500 mm

Material:

polyester reinforced with fibreglass

Ik Degree Of Protection:

IK10 IEC 62262 plain door)

Product Certifications:

Veritas

Enclosure Nominal Depth:

320 mm

Device Composition:

1 top part || 1 bottom part || 2 side part || 1 rear panel || 1 door || 1 canopy || 1 plinth

Body Type:

open top and bottom part assembled with side parts

Product Name:

Thalassa PLA

Range:

Thalassa

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Removable Parts:

door by hinges || rear panel by fixing element || canopy by fixing element

Door Opening Side:

reversible 180 °)

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Circularity Profile:

N/A

Standards:

IEC 62208

Product Or Component Type:

suitable enclosure
