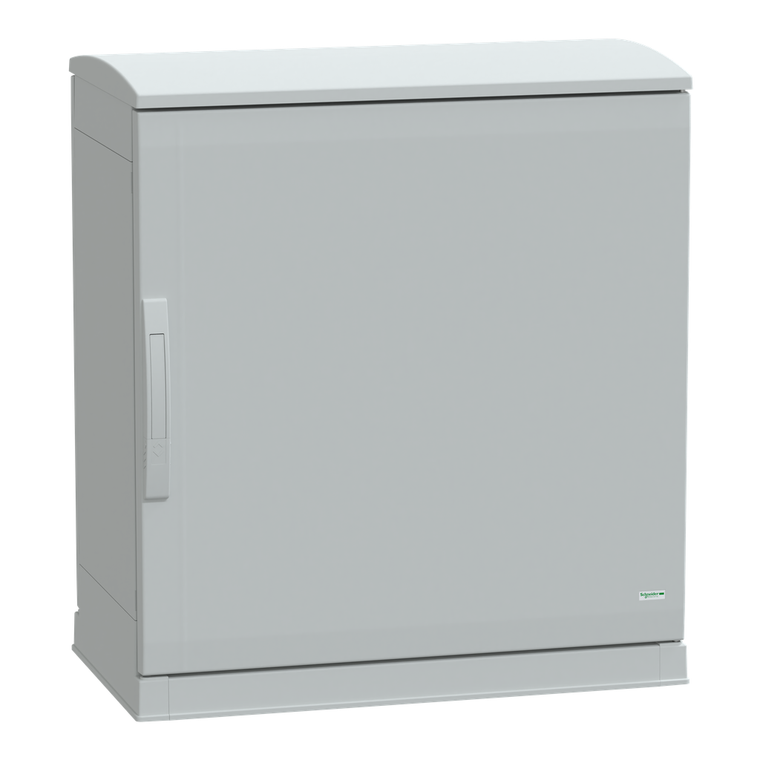

Schneider Electric NSYPLAZT774G 7035 Pla Plin+Can750X750X420

SKU:

NSYPLAZT774G

UPC:

3606480776342

MPN:

Condition:

New

Enclosure Nominal Height:

750 mm

Removable Parts:

door by hinges || rear panel by fixing element || canopy by fixing element

Device Application:

multi-purpose

Environmental Disclosure:

ENVPEP110505EN

Rohs Exemption Information:

Yes

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Device Short Name:

PLAZT

Electrical Insulation Class:

class II

Lock Type:

2 points handle lock, 5 mm double-bar

Fire Resistance:

960 °C IEC 62208

Range:

Thalassa

Ambient Air Temperature For Storage:

-35-90 °C

Mercury Free:

Yes

Ip Degree Of Protection:

IP44 IEC 60529 with plinth type open bottom part and ventilated canopy)

Sustainable Offer Status:

Green Premium product

Enclosure Nominal Width:

750 mm

Ik Degree Of Protection:

IK10 IEC 62262 plain door)

Product Or Component Type:

suitable enclosure

Device Composition:

1 top part || 1 bottom part || 2 side part || 1 rear panel || 1 door || 1 canopy || 1 plinth

Body Type:

open top and bottom part assembled with side parts

Accessibility For Operation:

bottom || rear || top || front

Color:

Gray RAL 7035)

Circularity Profile:

N/A

Product Certifications:

Veritas

Door Opening Side:

reversible 180 °)

Material:

polyester reinforced with fibreglass

Enclosure Mounting:

floor-standing

Number Of Doors:

1

Product Name:

Thalassa PLA

Enclosure Nominal Depth:

420 mm

Door Type:

Solid front

Standards:

IEC 62208

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.
