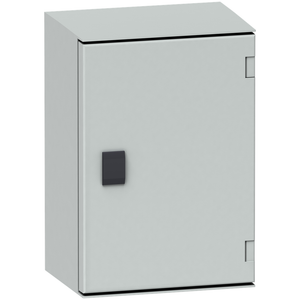

Schneider Electric NSYPLM32PG 7035 Wm Pc Plm 310X215X160Met Pl

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYPLM32PG 7035 Wm Pc Plm 310X215X160Met Pl

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYPLM32PG

UPC:

3606480776496

MPN:

Condition:

New

Removable Parts:

door by hinges || mounting plate by fixing element

Ip Degree Of Protection:

IP66 IEC 60529

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Sustainable Offer Status:

Green Premium product

Range:

Thalassa

Enclosure Nominal Height:

310 mm

Environmental Disclosure:

ENVPEP110118EN

Enclosure Nominal Depth:

160 mm

Fire Resistance:

960 °C IEC 62208

Product Name:

Thalassa PLM

Mercury Free:

Yes

Door Type:

Solid

Device Application:

multi-purpose

Enclosure Mounting:

wall mounted

Circularity Profile:

N/A

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Standards:

NEMA classification 4X || IEC 62208 || NEMA classification 13

Mounting Plate Description:

plain steel

Lock Type:

3 mm double-bar lock

Ambient Air Temperature For Operation:

-40-80 °C

Device Short Name:

PLM

Enclosure Nominal Width:

215 mm

Accessibility For Operation:

front

Number Of Locks:

1

Ik Degree Of Protection:

IK10 IEC 62262

Rohs Exemption Information:

Yes

Electrical Insulation Class:

class II

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Device Composition:

1 body || 1 door || 1 lock || 1 mounting plate

Material:

ABS + PC

Color:

Gray RAL 7035)

Product Or Component Type:

compact enclosure

Brochure:

View

Catalog:

View

Datasheet:

View
