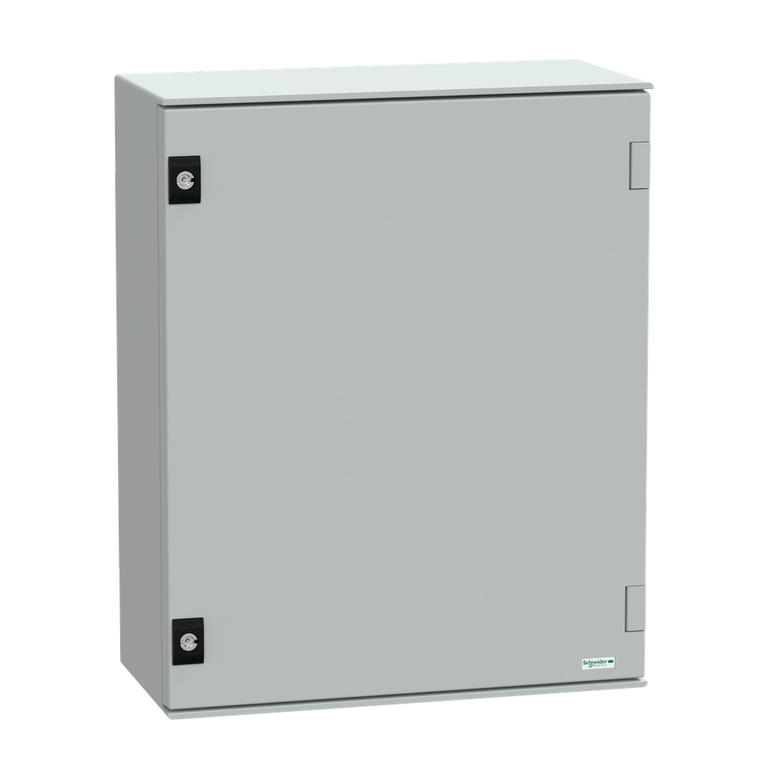

Schneider Electric NSYPLM54PG 7035 Wm Pol Plm530X430X200 Met Pl

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYPLM54PG 7035 Wm Pol Plm530X430X200 Met Pl

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYPLM54PG

UPC:

3606480776595

MPN:

Condition:

New

Product Name:

Thalassa PLM

Ik Degree Of Protection:

IK10 IEC 62262

Product Certifications:

UL

Enclosure Nominal Depth:

200 mm

Mounting Plate Description:

plain steel

Mercury Free:

Yes

Device Application:

multi-purpose

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Standards:

NEMA classification 4X || NEMA classification 13 || IEC 62208

Lock Type:

3 mm double-bar lock

Environmental Disclosure:

ENVPEP110118EN

Material:

polyester reinforced with fibreglass

Electrical Insulation Class:

class II

Circularity Profile:

N/A

Ip Degree Of Protection:

IP66 IEC 60529

Enclosure Mounting:

wall mounted

Number Of Locks:

2

Removable Parts:

door by hinges || mounting plate by fixing element

Product Or Component Type:

compact enclosure

Device Composition:

1 body || 1 door || 1 mounting plate || 2 lock

Range:

Thalassa

Device Short Name:

PLM

Fire Resistance:

960 °C IEC 62208

Door Type:

Solid

Color:

Gray RAL 7035)

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Ambient Air Temperature For Operation:

-40-80 °C

Enclosure Nominal Height:

530 mm

Rohs Exemption Information:

Yes

Accessibility For Operation:

front

Sustainable Offer Status:

Green Premium product

Enclosure Nominal Width:

430 mm

Catalog:

View

Datasheet:

View
