Schneider Electric

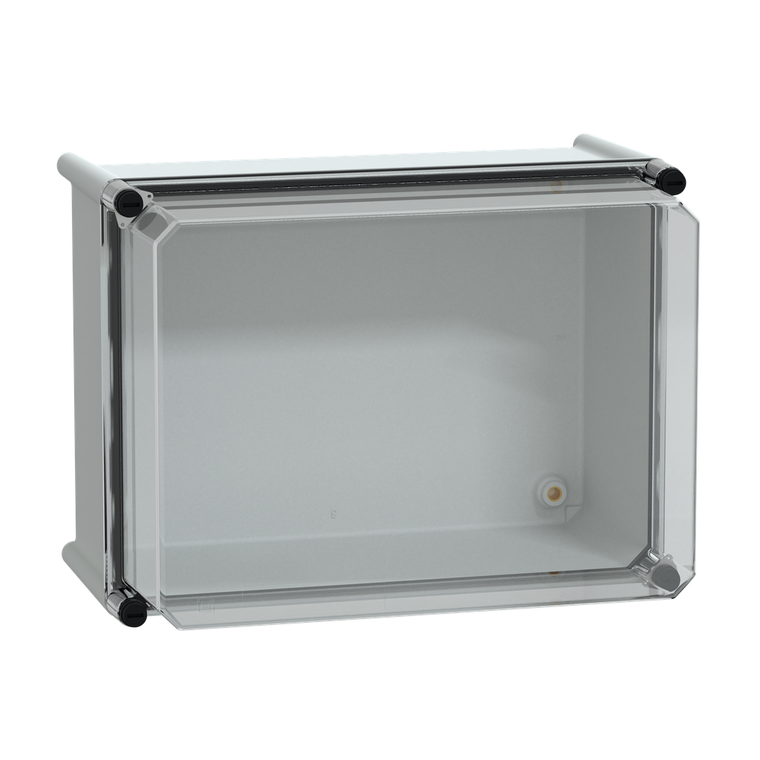

Schneider Electric NSYPLS2736AG 7035 Transp Pls Box27X36X23

(No reviews yet) Write a Review
SKU:
NSYPLS2736AG
UPC:
3.60648E+12
Condition:
New
Ip Degree Of Protection:
IP66 IEC 60529
Device Application:
multi-purpose
Ik Degree Of Protection:
IK09 IEC 62262
Product Name:
Thalassa PLS
Mercury Free:
Yes
Device Composition:
1 cover on enclosure || 1 rear part on enclosure || locking screws
Enclosure Mounting:
wall mounted
Enclosure Nominal Width:
360 mm
Enclosure Nominal Height:
270 mm
Environmental Disclosure:
ENVPEP110704EN
Color:
body Gray RAL 7035)
Lock Type:
slot screw
Electrical Insulation Class:
class II
Ambient Air Temperature For Storage:
-30-70 °C
Removable Parts:
cover locking screw
Range:
Thalassa
Sustainable Offer Status:
Green Premium product
Rohs Exemption Information:
Yes
Enclosure Nominal Depth:
230 mm
Material:
Cover polycarbonate || rear polyester reinforced with fibreglass
Device Short Name:
PLS
Type Of Front Cover:
high transparent cover
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Circularity Profile:
N/A
Product Certifications:
UL
Product Or Component Type:
insulating modular box
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Standards:
IEC 62208 || NEMA 4X || NEMA classification 13
Fire Resistance:
960 °C IEC 62208
Body Type:
one piece moulded
Catalog:
View
Datasheet:
View
$82.44

Description

Thalassa PLS box polyester rear with transparent PC cover. 270 x 360 x 230 mm. Insulating modular box. One piece moulded body. Wall mounted. High transparent cover, cover locking screw removable. Polyester reinforced with fibreglass rear, polycarbonate cover. Grey RAL 7035. IP65, IK09, NEMA (13,4X) 960°C fire resistance. Insulation Class II.
