Schneider Electric NSYPLS2736G 7035 Transp Pls Box27X36X18
Schneider Electric
$69.77
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric NSYPLS2736G 7035 Transp Pls Box27X36X18

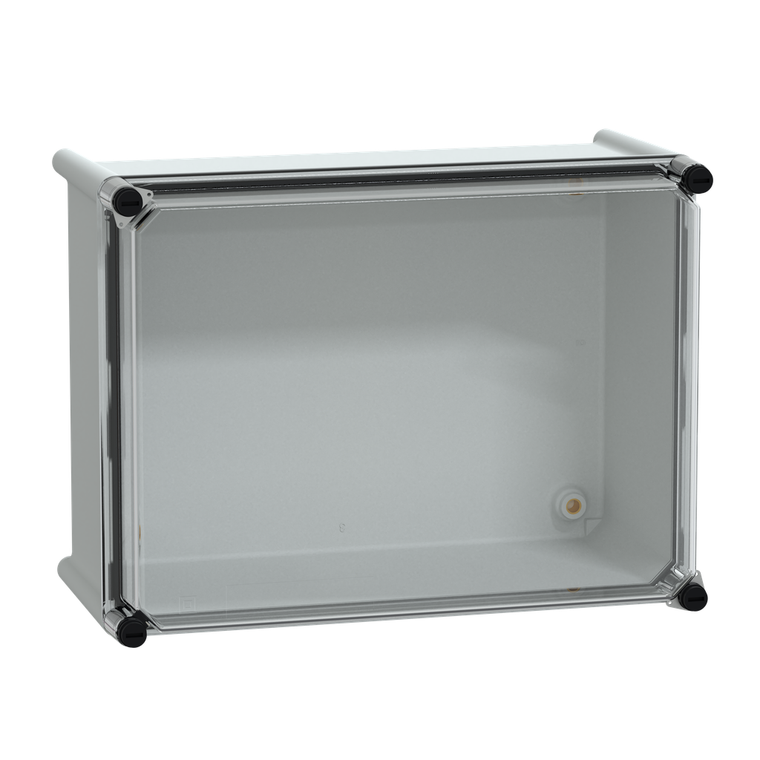

Thalassa PLS box polyester rear with transparent PC cover. 270 x 360 x 180 mm. Insulating modular box. One piece moulded body. Wall mounted. High transparent cover, cover locking screw removable. Polyester reinforced with fibreglass rear, polycarbonate cover. Grey RAL 7035. IP65, IK09, NEMA (13,4X) 960°C fire resistance. Insulation Class II.
- Enclosure Mounting:
- wall mounted
- Ip Degree Of Protection:
- IP66 IEC 60529
- Ik Degree Of Protection:
- IK09 IEC 62262
- Enclosure Nominal Height:
- 270 mm
- Environmental Disclosure:
- ENVPEP110704EN
- Color:
- body Gray RAL 7035)
- Body Type:
- one piece moulded
- Standards:
- NEMA classification 13 || IEC 62208 || NEMA 4X
- Sustainable Offer Status:
- Green Premium product
- Mercury Free:
- Yes
- Material:
- Cover polycarbonate || rear polyester reinforced with fibreglass
- Electrical Insulation Class:
- class II
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Circularity Profile:
- N/A
- Product Or Component Type:
- insulating modular box
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Rohs Exemption Information:
- Yes
- Device Short Name:
- PLS
- Device Application:
- multi-purpose
- Product Name:
- Thalassa PLS
- Product Certifications:
- UL
- Lock Type:
- slot screw
- Device Composition:
- 1 cover on enclosure || 1 rear part on enclosure || locking screws
- Fire Resistance:
- 960 °C IEC 62208
- Ambient Air Temperature For Storage:
- -30-70 °C
- Enclosure Nominal Depth:
- 180 mm
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Type Of Front Cover:
- low transparent cover
- Removable Parts:
- cover locking screw
- Enclosure Nominal Width:
- 360 mm
- Range:
- Thalassa
- Datasheet:
- View
