Schneider Electric NSYPLS5454G 7035 Transp Pls Box54X54X18
Schneider Electric
$162.64
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric NSYPLS5454G 7035 Transp Pls Box54X54X18

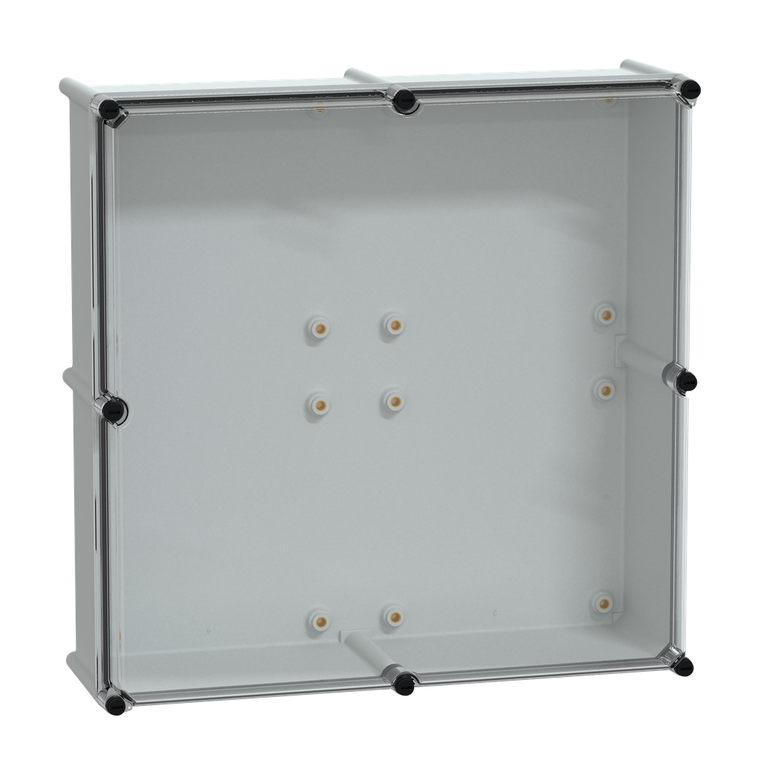

Thalassa PLS box polyester rear with transparent PC cover. 540 x 540 x 230 mm. Insulating modular box. One piece moulded body. Wall mounted. High transparent cover, cover locking screw removable. Polyester reinforced with fibreglass rear, polycarbonate cover. Grey RAL 7035. IP65, IK09, NEMA (13,4X) 960°C fire resistance. Insulation Class II.
- Lock Type:
- slot screw
- Ambient Air Temperature For Storage:
- -30-70 °C
- Removable Parts:
- cover locking screw
- Product Name:
- Thalassa PLS
- Sustainable Offer Status:
- Green Premium product
- Body Type:
- one piece moulded
- Enclosure Nominal Depth:
- 180 mm
- Mercury Free:
- Yes
- Enclosure Mounting:
- wall mounted
- Electrical Insulation Class:
- class II
- Color:
- body Gray RAL 7035)
- Range:
- Thalassa
- Fire Resistance:
- 960 °C IEC 62208
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Rohs Exemption Information:
- Yes
- Environmental Disclosure:
- ENVPEP110704EN
- Device Application:
- multi-purpose
- Enclosure Nominal Height:
- 540 mm
- Material:
- Cover polycarbonate || rear polyester reinforced with fibreglass
- Circularity Profile:
- N/A
- Standards:
- NEMA classification 13 || IEC 62208 || NEMA 4X
- Device Composition:
- 1 cover on enclosure || 1 rear part on enclosure || locking screws
- Device Short Name:
- PLS
- Product Certifications:
- UL
- Enclosure Nominal Width:
- 540 mm
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Ip Degree Of Protection:
- IP66 IEC 60529
- Type Of Front Cover:
- low transparent cover
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Product Or Component Type:
- insulating modular box
- Ik Degree Of Protection:
- IK09 IEC 62262
- Datasheet:
- View
