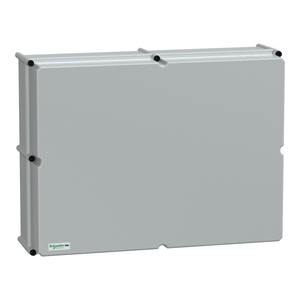

Schneider Electric NSYPLS5472AG 7035 Transp Pls Box54X72X23

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric NSYPLS5472AG 7035 Transp Pls Box54X72X23

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYPLS5472AG

UPC:

3606480777073

MPN:

Condition:

New

Rohs Exemption Information:

Yes

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury Free:

Yes

Product Name:

Thalassa PLS

Enclosure Nominal Depth:

230 mm

Circularity Profile:

N/A

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Body Type:

one piece moulded

Material:

Cover polycarbonate || rear polyester reinforced with fibreglass

Product Or Component Type:

insulating modular box

Device Application:

multi-purpose

Sustainable Offer Status:

Green Premium product

Product Certifications:

UL

Ik Degree Of Protection:

IK09 IEC 62262

Range:

Thalassa

Type Of Front Cover:

high transparent cover

Standards:

IEC 62208 || NEMA 4X || NEMA classification 13

Lock Type:

slot screw

Device Composition:

1 cover on enclosure || 1 rear part on enclosure || locking screws

Environmental Disclosure:

ENVPEP110704EN

Removable Parts:

cover locking screw

Enclosure Nominal Height:

540 mm

Ip Degree Of Protection:

IP66 IEC 60529

Device Short Name:

PLS

Enclosure Nominal Width:

720 mm

Fire Resistance:

960 °C IEC 62208

Color:

body Gray RAL 7035)

Electrical Insulation Class:

class II

Enclosure Mounting:

wall mounted

Ambient Air Temperature For Storage:

-30-70 °C

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.
