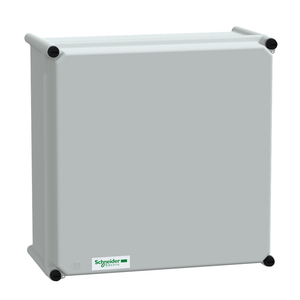

Schneider Electric NSYPLSC3636G 7035 Opaq Pc Pls Box36X36X18

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYPLSC3636G 7035 Opaq Pc Pls Box36X36X18

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYPLSC3636G

UPC:

3606480777165

MPN:

Condition:

New

Rohs Exemption Information:

Yes

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Product Certifications:

UL

Ip Degree Of Protection:

IP66 IEC 60529

Device Short Name:

PLS

Body Type:

one piece moulded

Device Composition:

1 cover on enclosure || 1 rear part on enclosure || locking screws

Enclosure Nominal Depth:

180 mm

Range:

Thalassa

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Device Application:

multi-purpose

Enclosure Nominal Height:

360 mm

Mercury Free:

Yes

Circularity Profile:

N/A

Electrical Insulation Class:

class II

Removable Parts:

cover locking screw

Sustainable Offer Status:

Green Premium product

Ambient Air Temperature For Storage:

-30-70 °C

Enclosure Mounting:

wall mounted

Material:

Cover polycarbonate || rear polyester reinforced with fibreglass

Product Name:

Thalassa PLS

Enclosure Nominal Width:

360 mm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Standards:

IEC 62208 || NEMA classification 13 || NEMA 4X

Lock Type:

slot screw

Product Or Component Type:

insulating modular box

Ik Degree Of Protection:

IK09 IEC 62262

Type Of Front Cover:

low plain cover

Fire Resistance:

960 °C IEC 62208

Environmental Disclosure:

ENVPEP110704EN

Color:

body Gray RAL 7035)

Catalog:

View

Datasheet:

View
