Schneider Electric NSYPLSP2754G 7035 Opaque Pol Pls Box27X54X18
Schneider Electric
$123.53
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric NSYPLSP2754G 7035 Opaque Pol Pls Box27X54X18

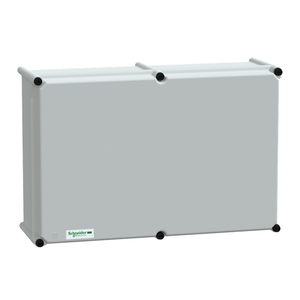

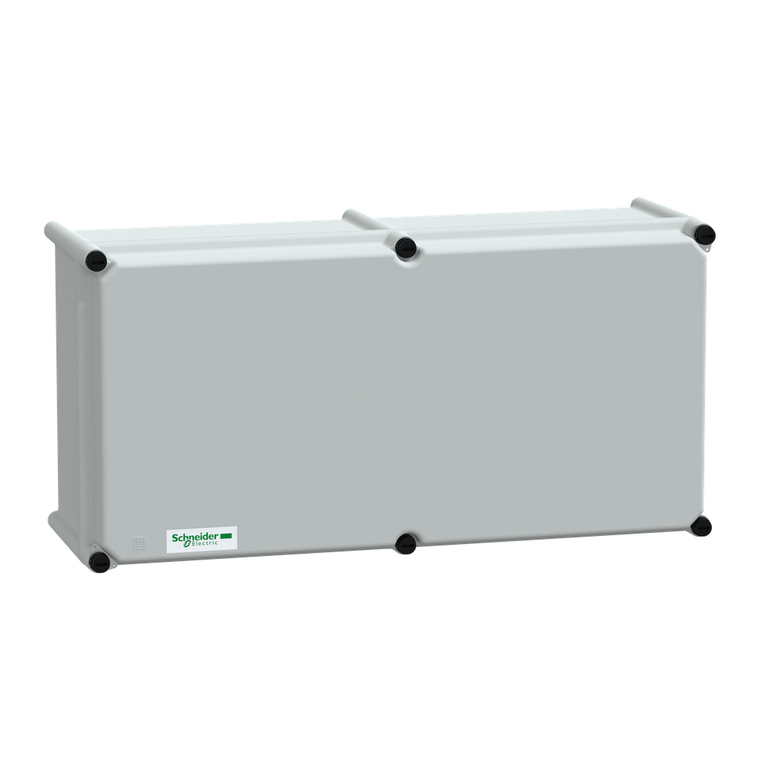

Thalassa PLS box polyester rear with opaque polyester cover. 270 x 540 x 180 mm. Insulating modular box. One piece moulded body. Wall mounted. Low plain cover, cover locking screw removable. Polyester reinforced with fibreglass rear and cover. Grey RAL 7035. IP65, IK09, NEMA (13,4X) 960°C fire resistance. Insulation Class II.
- Enclosure Nominal Height:
- 270 mm
- Device Short Name:
- PLS
- Body Type:
- one piece moulded
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Removable Parts:
- cover locking screw
- Product Certifications:
- UL
- Range:
- Thalassa
- Electrical Insulation Class:
- class II
- Material:
- rear polyester reinforced with fibreglass || Cover polyester reinforced with fibreglass
- Ik Degree Of Protection:
- IK09 IEC 62262
- Rohs Exemption Information:
- Yes
- Fire Resistance:
- 960 °C IEC 62208
- Product Name:
- Thalassa PLS
- Mercury Free:
- Yes
- Device Composition:
- 1 cover on enclosure || 1 rear part on enclosure || locking screws
- Enclosure Nominal Width:
- 540 mm
- Sustainable Offer Status:
- Green Premium product
- Lock Type:
- slot screw
- Ip Degree Of Protection:
- IP66 IEC 60529
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Product Or Component Type:
- insulating modular box
- Standards:
- NEMA classification 13 || NEMA 4X || IEC 62208
- Ambient Air Temperature For Storage:
- -30-70 °C
- Color:
- body Gray RAL 7035)
- Type Of Front Cover:
- low plain cover
- Device Application:
- multi-purpose
- Circularity Profile:
- N/A
- Enclosure Nominal Depth:
- 180 mm
- Enclosure Mounting:
- wall mounted
- Environmental Disclosure:
- ENVPEP110704EN
- Catalog:
- View
- Datasheet:
- View
