Schneider Electric NSYRCKP8 Partial Fixed Rack 19P 8U

Schneider Electric NSYRCKP8 Partial Fixed Rack 19P 8U

Schneider Electric
SKU:
NSYRCKP8
|
UPC:
3606480066931
Availability:
Contact us to confirm availability and lead times.
$100.39
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

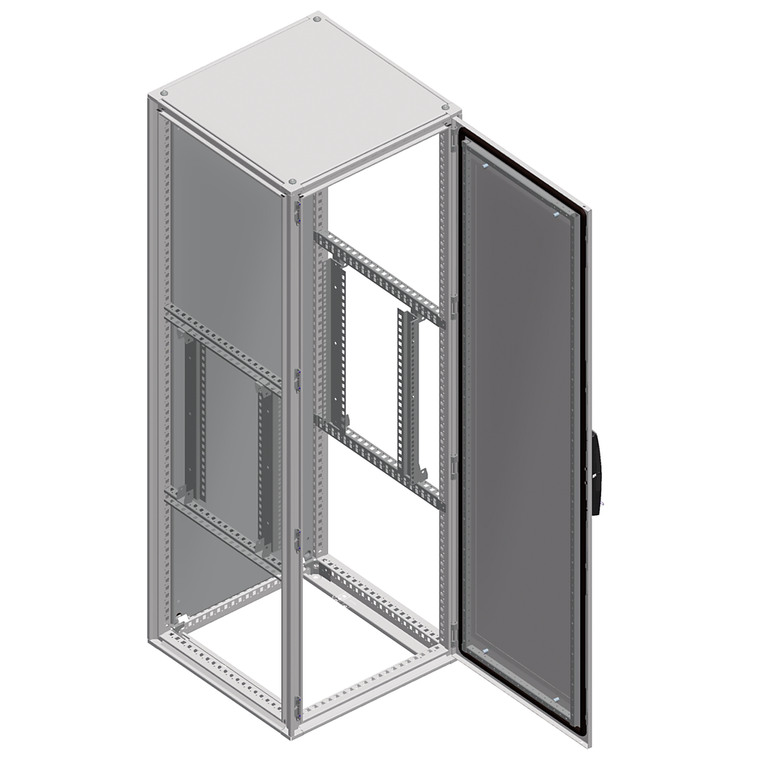

Spacial SF / SM partial fixed rack 19 inches. Enclosure width is 400 mm. 8 Units of 19 inch. Electronic application. Mounting accessory. Cross rails mounting support. Mounting on top front of enclosure. Adjustable in depth every 25 mm. Steel made, zinc coated surface finish. permissible load is 2 kg per unit. 9 uprights and fixing elements incl.
Additional Information
Reach Free Of Svhc:
Yes
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Quantity Per Set:
set of 1
Mounting Location:
top front of enclosure
Warranty:
18 months
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
Device Application:
electronic application
Environmental Disclosure:
ENVPEP110923EN
Fixing Mode:
by fixing element
Sustainable Offer Status:
Green Premium product
Rack Type:
partial fixed
Toxic Heavy Metal Free:
Yes
Height:
400 mm
Number Of Units 19":
8
Permanent Permissible Load:
2 kg per unit
Mounting Support:
cross rails
Adjustment:
adjustable in depth every 25 mm
Product Or Component Type:
19" rack
Circularity Profile:
N/A
Range Compatibility:
Spacial Spacial SF || Spacial Spacial SM
Range:
Spacial
Material:
steel
Surface Finish:
zinc coated
Depth:
60 mm
Mercury Free:
Yes
Enclosure Nominal Dimensions:
H: 400 mm
Rohs Exemption Information:
Yes
Device Composition:
fixing elements || 2 upright
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Accessory / Separate Part Category:
mounting accessory
