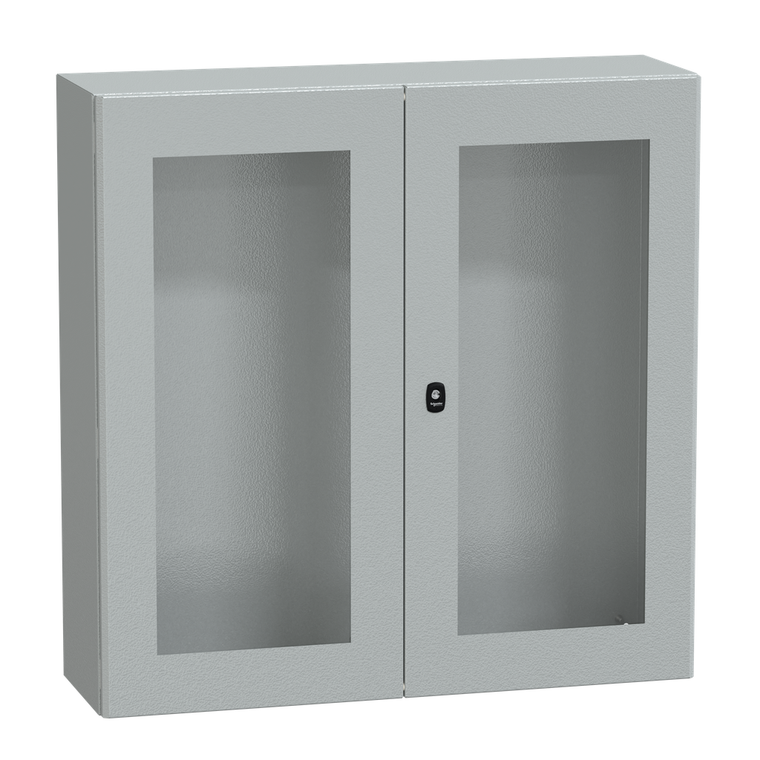

Schneider Electric NSYS3D101030DT S3D 2 Glazed Do.H1000Xw1000Xd300

(No reviews yet) Write a Review
SKU:
NSYS3D101030DT
UPC:
3606480160318
Condition:
New
Circularity Profile:
N/A
Warranty:
18 months
Device Composition:
1 body || 2 cable gland plate || 1 lock || 2 door
Door Type:
Glass
Variant Particularity:
gutter-shaped front rail double sheet thickness || single piece body
Rohs Exemption Information:
Yes
Sustainable Offer Status:
Green Premium product
Product Or Component Type:
compact enclosure
Installation Accessory Type:
wall-mounting
Material:
body steel || door steel and security glass
Surface Finish:
epoxy-polyester powder
Number Of Doors:
front face 2
Mercury Free:
Yes
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Enclosure Nominal Width:
1000 mm
Door Opening Side:
reversible 120 °)
Accessibility For Operation:
front
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Enclosure Nominal Depth:
300 mm
Range:
Spacial
Color:
Gray RAL 7035)
Lock Type:
3 points lock, 3 mm double-bar
Ip Degree Of Protection:
IP55 IEC 60529
Mounting Plate Description:
without mounting plate
Net Weight:
45 kg
Product Certifications:
BV || LR || UL || GL || DNV || cUL
Type Of Gland Plate:
standard
Electromagnetic Compatibility:
electromagnetic field immunity test
Product Name:
Spacial S3D
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Enclosure Nominal Height:
1000 mm
Removable Parts:
door by hinges || cable gland plate by screws
Device Application:
multi-purpose
Ik Degree Of Protection:
IK08 IEC 62262
Environmental Disclosure:
ENVPEP100104EN
Standards:
IEC 62208
Brochure:
View
Datasheet:
View
$907.23

Description

Spacial S3D wall mounted steel enclosure with 2 glazed doors. 1000 x 1000 x 300 mm. Single piece body, without mounting plate. Robust construction based on a new design. 3-point closure system with handle and 3 mm double bar lock insert. Steel made, epoxy-polyester powder finish. Gutter shaped front rail double sheet thickness. Protection IP 55, IK08, Grey RAL 7035. 2 cable gland plates included, standard. Extensive range of accessories. Packaging is reusable after assembly.
