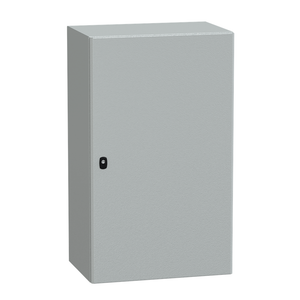

Schneider Electric NSYS3D10640 S3D H1000Xw600Xd400 One Plain Do.

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYS3D10640 S3D H1000Xw600Xd400 One Plain Do.

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYS3D10640

UPC:

3606480160189

MPN:

Condition:

New

Nema Degree Of Protection:

NEMA 4X/13

Device Application:

multi-purpose

Surface Finish:

epoxy-polyester powder

Enclosure Nominal Depth:

400 mm

Net Weight:

33 kg

Product Name:

Spacial S3D

Enclosure Nominal Width:

600 mm

Enclosure Nominal Height:

1000 mm

Product Or Component Type:

compact enclosure

Type Of Gland Plate:

standard

Ik Degree Of Protection:

IK10 IEC 62262

Number Of Doors:

front face 1

Mounting Plate Description:

without mounting plate

Rohs Exemption Information:

Yes

Environmental Disclosure:

ENVPEP100104EN

Range:

Spacial

Door Type:

Solid

Variant Particularity:

single piece body || gutter-shaped front rail double sheet thickness

Device Composition:

1 body || 1 door || 1 lock || 1 cable gland plate

Mercury Free:

Yes

Installation Accessory Type:

wall-mounting

Ip Degree Of Protection:

IP66 IEC 60529

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Accessibility For Operation:

front

Product Certifications:

UL || DNV || GL || BV || LR || cUL

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Warranty:

18 months

Circularity Profile:

N/A

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Color:

Gray RAL 7035)

Lock Type:

3 points lock, 3 mm double-bar

Removable Parts:

door by hinges || cable gland plate by screws

Standards:

IEC 62208

Sustainable Offer Status:

Green Premium product

Material:

steel

Door Opening Side:

reversible 120 °)

Brochure:

View

Catalog:

View

Datasheet:

View
