Schneider Electric

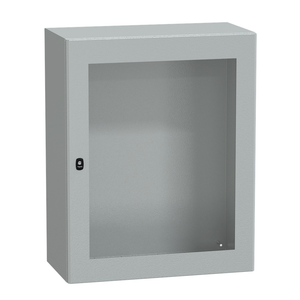

Schneider Electric NSYS3D10830T S3D Glazd Door.H1000Xw800Xd300

(No reviews yet) Write a Review
SKU:
NSYS3D10830T
UPC:
3606480160103
Condition:
New
Product Certifications:
DNV || cUL || LR || BV || UL || GL
Accessibility For Operation:
front
Enclosure Nominal Depth:
300 mm
Installation Accessory Type:
wall-mounting
Circularity Profile:
N/A
Ik Degree Of Protection:
IK08 IEC 62262
Device Composition:
1 body || 2 cable gland plate || 1 door || 1 lock
Material:
body steel || door steel and security glass
Surface Finish:
epoxy-polyester powder
Mounting Plate Description:
without mounting plate
Ip Degree Of Protection:
IP66 IEC 60529
Standards:
IEC 62208
Electromagnetic Compatibility:
electromagnetic field immunity test
Number Of Doors:
front face 1
Door Opening Side:
reversible 120 °)
Device Application:
multi-purpose
Product Name:
Spacial S3D
Removable Parts:
door by hinges || cable gland plate by screws
Type Of Gland Plate:
standard
Rohs Exemption Information:
Yes
Net Weight:
37 kg
Enclosure Nominal Height:
1000 mm
Product Or Component Type:
compact enclosure
Environmental Disclosure:
ENVPEP100104EN
Variant Particularity:
gutter-shaped front rail double sheet thickness || single piece body
Warranty:
18 months
Range:
Spacial
Sustainable Offer Status:
Green Premium product
Enclosure Nominal Width:
800 mm
Color:
Gray RAL 7035)
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Mercury Free:
Yes
Nema Degree Of Protection:
NEMA 4X/13
Lock Type:
3 points lock, 3 mm double-bar
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Door Type:
Glass
Brochure:
View
Datasheet:
View
$385.89

Description

Spacial S3D wall mounted steel enclosure with glazed door. 1000 x 800 x 300 mm. Single piece body, without mounting plate. Robust construction based on a new design. 3-point closure system with handle and 3 mm double bar lock insert. Steel made, epoxy-polyester powder finish. Gutter shaped front rail double sheet thickness. Protection IP 66, IK08, Grey RAL 7035. 2 cable gland plates included, standard. Extensive range of accessories. Packaging is reusable after assembly.
