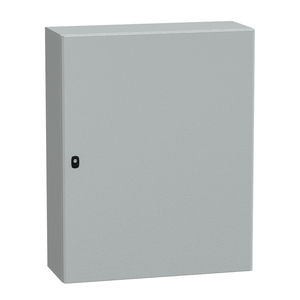

Schneider Electric NSYS3D10840 S3D H1000Xw800Xd400 One Plain Do.

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYS3D10840 S3D H1000Xw800Xd400 One Plain Do.

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYS3D10840

UPC:

3.60648E+12

MPN:

Condition:

New

Enclosure Nominal Height:

1000 mm

Range:

Spacial

Enclosure Nominal Depth:

400 mm

Device Application:

multi-purpose

Nema Degree Of Protection:

NEMA 4X/13

Ik Degree Of Protection:

IK10 IEC 62262

Warranty:

18 months

Installation Accessory Type:

wall-mounting

Lock Type:

3 points lock, 3 mm double-bar

Variant Particularity:

single piece body || gutter-shaped front rail double sheet thickness

Product Name:

Spacial S3D

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Net Weight:

42 kg

Mercury Free:

Yes

Accessibility For Operation:

front

Door Type:

Solid

Rohs Exemption Information:

Yes

Removable Parts:

door by hinges || cable gland plate by screws

Product Or Component Type:

compact enclosure

Surface Finish:

epoxy-polyester powder

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Number Of Doors:

front face 1

Device Composition:

1 body || 2 cable gland plate || 1 door || 1 lock

Sustainable Offer Status:

Green Premium product

Door Opening Side:

reversible 120 °)

Product Certifications:

DNV || cUL || UL || BV || LR || GL

Circularity Profile:

N/A

Color:

Gray RAL 7035)

Standards:

IEC 62208

Type Of Gland Plate:

standard

Enclosure Nominal Width:

800 mm

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Environmental Disclosure:

ENVPEP100104EN

Mounting Plate Description:

without mounting plate

Material:

steel

Ip Degree Of Protection:

IP66 IEC 60529

Brochure:

View

Datasheet:

View
