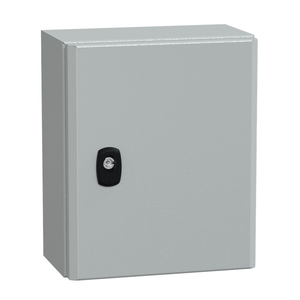

Schneider Electric NSYS3D32515 S3D H300Xw250Xd150 One Plain Door

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric NSYS3D32515 S3D H300Xw250Xd150 One Plain Door

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYS3D32515

UPC:

3606480159787

MPN:

Condition:

New

Enclosure Nominal Height:

300 mm

Number Of Doors:

front face 1

Product Or Component Type:

compact enclosure

Surface Finish:

epoxy-polyester powder

Product Name:

Spacial S3D

Product Certifications:

BV || UL || cUL || LR || GL || DNV

Door Type:

Solid

Sustainable Offer Status:

Green Premium product

Mounting Plate Description:

without mounting plate

Net Weight:

3.48 kg

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Rohs Exemption Information:

Yes

Warranty:

18 months

Circularity Profile:

N/A

Door Opening Side:

reversible 120 °)

Type Of Gland Plate:

standard

Installation Accessory Type:

wall-mounting

Variant Particularity:

gutter-shaped front rail double sheet thickness || single piece body

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Range:

Spacial

Ik Degree Of Protection:

IK10 IEC 62262

Removable Parts:

door by hinges || cable gland plate by screws

Nema Degree Of Protection:

NEMA 4X/13

Enclosure Nominal Width:

250 mm

Accessibility For Operation:

front

Ip Degree Of Protection:

IP66 IEC 60529

Color:

Gray RAL 7035)

Environmental Disclosure:

ENVPEP100104EN

Device Composition:

1 body || 1 door || 1 lock || 1 cable gland plate

Device Application:

multi-purpose

Enclosure Nominal Depth:

150 mm

Mercury Free:

Yes

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Material:

steel

Standards:

IEC 62208

Lock Type:

3 mm double-bar lock

Brochure:

View

Datasheet:

View
