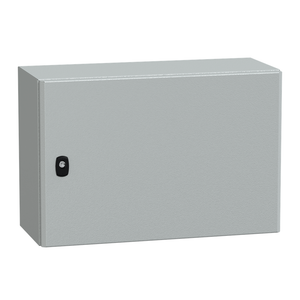

Schneider Electric NSYS3D4625P S3D H400Xw600Xd250+Plain Chassis

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYS3D4625P S3D H400Xw600Xd250+Plain Chassis

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYS3D4625P

UPC:

3606480159503

MPN:

Condition:

New

Net Weight:

14.5 kg

Accessibility For Operation:

front

Mounting Plate Description:

plain

Sustainable Offer Status:

Green Premium product

Removable Parts:

door by hinges || cable gland plate by screws || mounting plate by fixing element

Product Name:

Spacial S3D

Device Application:

multi-purpose

Lock Type:

3 points lock, 3 mm double-bar

Variant Particularity:

gutter-shaped front rail double sheet thickness || single piece body

Standards:

IEC 62208

Enclosure Nominal Width:

600 mm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Product Certifications:

GL || BV || LR || UL || DNV || cUL

Circularity Profile:

N/A

Mercury Free:

Yes

Warranty:

18 months

Surface Finish:

enclosure epoxy-polyester powder

Door Opening Side:

reversible 120 °)

Range:

Spacial

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Material:

enclosure steel || mounting plate galvanised steel

Ip Degree Of Protection:

IP66 IEC 60529

Type Of Gland Plate:

standard

Ik Degree Of Protection:

IK10 IEC 62262

Installation Accessory Type:

wall-mounting

Environmental Disclosure:

ENVPEP100104EN

Rohs Exemption Information:

Yes

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Enclosure Nominal Depth:

250 mm

Device Composition:

1 body || 1 mounting plate || 1 door with lock || 1 cable gland plate

Nema Degree Of Protection:

NEMA 4X/13

Door Type:

Solid

Number Of Doors:

front face 1

Enclosure Nominal Height:

400 mm

Product Or Component Type:

compact enclosure

Color:

enclosure Gray RAL 7035)

Brochure:

View

Datasheet:

View
