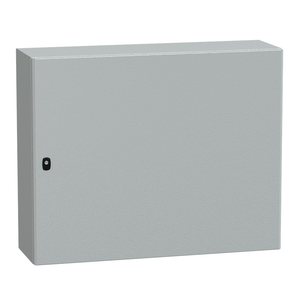

Schneider Electric NSYS3D81030DP S3D 2D H800Xw1000Xd300+Chassis

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYS3D81030DP S3D 2D H800Xw1000Xd300+Chassis

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYS3D81030DP

UPC:

3606480159046

MPN:

Condition:

New

Mercury Free:

Yes

Warranty:

18 months

Rohs Exemption Information:

Yes

Product Name:

Spacial S3D

Door Opening Side:

reversible 120 °)

Surface Finish:

enclosure epoxy-polyester powder

Accessibility For Operation:

front

Circularity Profile:

N/A

Device Application:

multi-purpose

Variant Particularity:

single piece body || gutter-shaped front rail double sheet thickness

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Color:

enclosure Gray RAL 7035)

Mounting Plate Description:

plain

Product Certifications:

cUL || UL || GL || DNV || BV || LR

Enclosure Nominal Width:

1000 mm

Environmental Disclosure:

ENVPEP100104EN

Ik Degree Of Protection:

IK10 IEC 62262

Door Type:

Solid

Product Or Component Type:

compact enclosure

Ip Degree Of Protection:

IP55 IEC 60529

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Device Composition:

1 body || 2 cable gland plate || 2 door with lock || 1 mounting plate

Enclosure Nominal Height:

800 mm

Sustainable Offer Status:

Green Premium product

Type Of Gland Plate:

standard

Material:

enclosure steel || mounting plate galvanised steel

Number Of Doors:

front face 2

Installation Accessory Type:

wall-mounting

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Lock Type:

3 points lock, 3 mm double-bar

Standards:

IEC 62208

Removable Parts:

door by hinges || cable gland plate by screws || mounting plate by fixing element

Enclosure Nominal Depth:

300 mm

Net Weight:

51 kg

Range:

Spacial

Brochure:

View

Datasheet:

View
