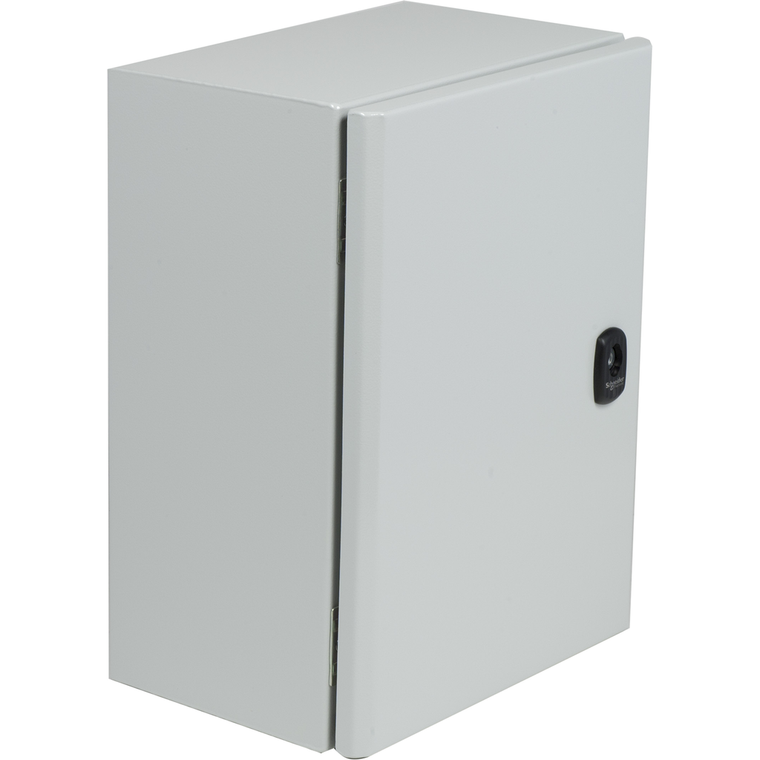

Schneider Electric NSYS3DC6620 S3Dc H600Xl600Xp200 Plain Door

SKU:

NSYS3DC6620

UPC:

3606480314094

MPN:

Condition:

New

Door Type:

Solid

Product Name:

Spacial S3DC

Ik Degree Of Protection:

IK10 IEC 62262

Environmental Disclosure:

ENVPEP100104EN

Door Opening Side:

reversible 120 °)

Material:

steel

Enclosure Nominal Width:

600 mm

Variant Particularity:

single piece body || gutter-shaped front profile double sheet thickness

Surface Finish:

epoxy-polyester powder

Accessibility For Operation:

front

Number Of Doors:

front face 1

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Warranty:

18 months

Color:

Gray RAL 7035)

Ip Degree Of Protection:

IP66 IEC 60529

Standards:

IEC 62208

Removable Parts:

door by hinges

Device Composition:

1 body || 1 door || 1 lock

Mercury Free:

Yes

Enclosure Nominal Depth:

200 mm

Sustainable Offer Status:

Green Premium product

Rohs Exemption Information:

Yes

Installation Accessory Type:

wall-mounting

Nema Degree Of Protection:

NEMA 4X/13

Mounting Plate Description:

without mounting plate

Circularity Profile:

N/A

Type Of Gland Plate:

without gland plate

Product Or Component Type:

compact enclosure

Range:

Spacial

Lock Type:

3 points lock, screw driver insert

Product Certifications:

UL

Enclosure Nominal Height:

600 mm

Net Weight:

14 kg

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Device Application:

multi-purpose

Brochure:

View

Catalog:

View

Datasheet:

View
