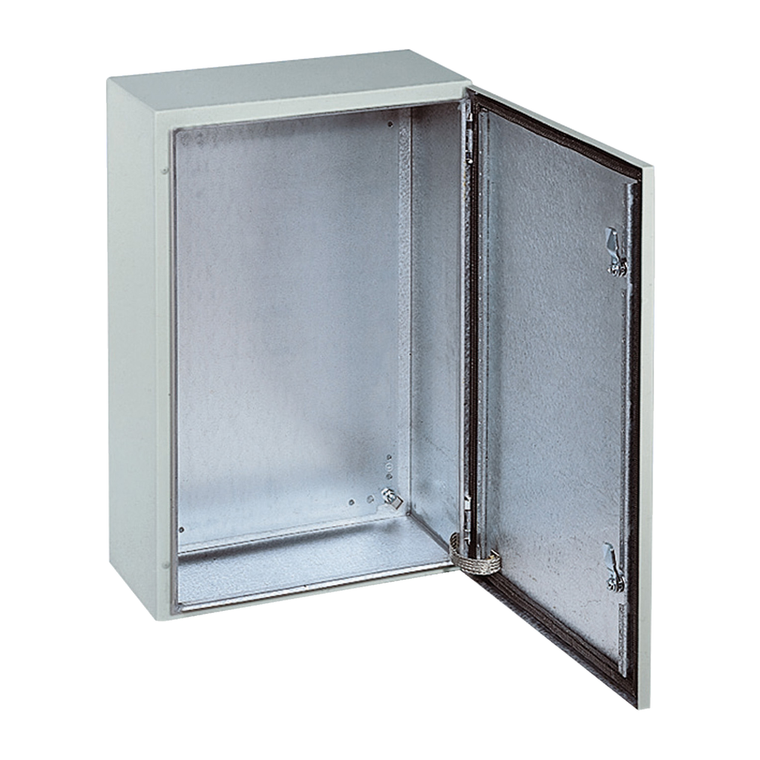

Schneider Electric NSYS3HF8630P S3Hf Emc Encl H800Xw600Xd300 Cha

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYS3HF8630P S3Hf Emc Encl H800Xw600Xd300 Cha

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYS3HF8630P

UPC:

3.60648E+12

MPN:

Condition:

New

Range:

Spacial

Type Of Gland Plate:

without gland plate

Environmental Disclosure:

ENVPEP100104EN

Surface Finish:

epoxy-polyester powder

Rohs Exemption Information:

Yes

Net Weight:

32 kg

Installation Accessory Type:

wall-mounting

Circularity Profile:

N/A

Color:

Gray RAL 7035)

Door Type:

Solid

Sustainable Offer Status:

Green Premium product

Ip Degree Of Protection:

IP55

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Device Application:

Industrial Application

Product Name:

Spacial S3HF

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Removable Parts:

door by hinges

Enclosure Nominal Height:

800 mm

Number Of Doors:

front face 1

Accessibility For Operation:

front

Mounting Plate Description:

without mounting plate

Warranty:

18 months

Electromagnetic Compatibility:

EMC immunity

Material:

body aluzinc

Enclosure Nominal Depth:

300 mm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Mercury Free:

Yes

Product Or Component Type:

compact enclosure

Standards:

IEC 60529

Enclosure Nominal Width:

600 mm

Lock Type:

3 points lock, 3 mm double-bar

Variant Particularity:

single piece body

Device Composition:

1 body || 1 door with lock || 1 mounting plate

Ik Degree Of Protection:

IK10 IEC 62262
